Aurender AP20 Amplifier

Aurender AP20 Amplifier

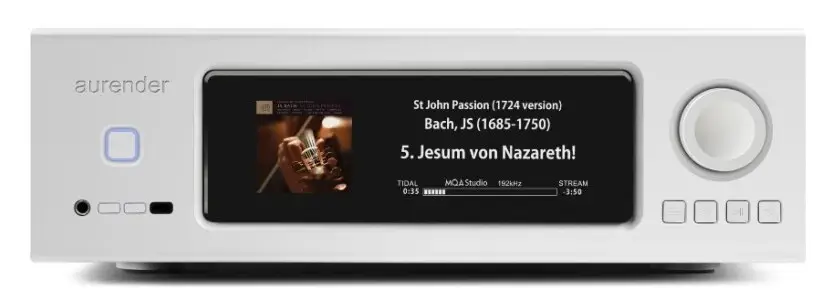

The Aurender AP20 Integrated Amplifier is crafted with precision and functionality, encapsulated in a machined aluminum chassis measuring 16.93 inches in width, 14.2 inches in depth, and 5.9 inches in height. Weighing 57.3 pounds, this amplifier boasts a robust build that ensures durability and stability in performance. The front panel is adorned with an 8.8-inch 1920 x 480 Wide IPS Color LCD, providing a clear and intuitive display for ease of use.

Under the hood, the technical specifications reveal a meticulous engineering approach. The power supply features a full linear design with 2x 400VA Toroidy Transformers for the left and right power amplifiers, as well as dedicated power for audio boards and processing units. The CPU driving this powerhouse is an Intel Low Power Quad Core, supported by 8GB of RAM. Storage capacity is user-expandable with two 2.5-inch compartments, and the system relies on a 480GB NVME SSD for cache and system operations. Connectivity is facilitated through 2x USB 3.0 ports at the rear, along with a double-isolated Gigabit LAN port.

In the audio realm, the Aurender AP20 doesn't compromise. Volume control is achieved through a relay-based R2R stereo attenuator with velocity-sensitive operation, providing a range from -64dB to 0dB. The amplifier utilizes dual AKM 4497 DAC chipsets in a dual-mono configuration, and an OCXO audio word clock ensures precise timing. The Aurender AP20 supports a variety of audio formats, including PCM up to 32-bit/768 kHz and DSD up to DSD512. Connectivity options abound, with digital inputs including 1x Coax RCA, 1x Coax BNC, and 2x Optical/Toslink, as well as analog outputs through XLR (Balanced). The headphone section features a 1/4-inch (6.5mm) unbalanced jack, while MQA full-decoding capability is also on board.

The heart of the Aurender AP20 lies in its amplifier specifications. Utilizing 2x Purifi 1ET400A Class D Amplifier Modules in a dual-mono configuration, it delivers a rated power output of 200W into 8 ohms and 350W into 4 ohms. The Total Harmonic Distortion (THD) remains impressively low at 0.003% across the entire power range. The damping factor of 800 (ref. 8Ω, 20 Hz to 6.5 kHz) ensures tight control over the speakers, while the output impedance stays below 65μΩ at 1kHz. The power configuration includes full linear and dual-mono setups with two 400VA Audio Grade Toroidy toroidal transformers. Binding posts are of the highest quality, featuring WBT nextgen™ pole terminals with signal conductors made of pure copper, completing the audio circuit with utmost integrity.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Aurender AP20 Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Aurender AP20 Amplifier more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Aurender AP20 Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Aurender AP20 Amplifier Specifications:

Physical Specifications

• Dimensions: 16.93″W x 14.2″D x 5.9″H
• Weight: 57.3 lb
• Material: Machined Aluminum Chassis
• Front Panel Display: 8.8″ 1920 x 480 Wide IPS Color LCD

Technical Specifications

• Power Supply: Full Linear, 2x 400VA Toroidy Transformers (L&R Power Amp), 2x 50W (L&R Audio Boards), 1x50W (CPU), 1x25W (FPGA)
• CPU: Intel Low Power Quad Core
• RAM: 8GB
• Library Storage Capacity: 2X 2.5″ Compartments (User-Installable Storage)
• SSD for System & Cache: 480GB NVME
• Data USB Ports: 2X USB 3.0 (Rear)
• Software Suite: Aurender Conductor, A30 Manager
• Ethernet Port: Double-Isolated Gigabit LAN
• Uninterruptible Power Supply (UPS): Yes (Super Capacitors)
• Power Consumption: Play (47W), Peak (80W), Standby (6W)
• CD Ripping Capability: N/A

Audio Specifications

• Volume Control: Relay-Based R2R Stereo Attenuator -64dB ~ 0dB., Velocity Sensitive Operation
• Analog Outputs: XLR (Balanced)
• DAC Chipset: AKM 4497 – Dual-Mono
• Audio Word Clock: OCXO
• Analog Outputs Supported Format: PCM: Up to 32-bit / 768 kHz; DSD: Up to DSD512
• Digital Outputs: N/A
• SPDIF & AES/EBU Output Supported Format: N/A
• Digital Inputs: 1X Coax RCA, 1X Coax BNC, 2X Optical/Toslink
• Headphone Section: 1 x 1/4″ (6.5mm) Unbalanced
• MQA Support: MQA Full-Decoder On Board
• Compatible Formats: DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
• DSD-to-PCM Conversion: N/A

Amplifier Specifications

• Amplifier Module: 2x Purifi 1ET400A Class D Amplifier Module in Dual-Mono Configuration
• Rated Power Output: 200 W into 8 ohms / 350 W into 4 ohms
• THD (20Hz-20kHz): 0.003 % (1W to 200 W, 8 ohms and 4 ohms)
• Damping Factor: 800 (ref. 8Ω 20 Hz to 6.5 kHz)
• Output Impedance: <65μΩ @ 1kHz
• Power Configuration: Full linear & Dual-Mono – 2 x 400VA Audio grade Toroidy toroidal transformers
• Power Supply Filter Capacitors: Total 80,000uF ( 40,000 uF / channel)
• Binding Posts: WBT nextgen™ pole terminal – Signal conductor made of pure copper
