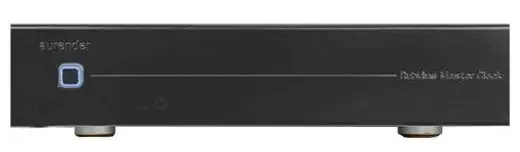

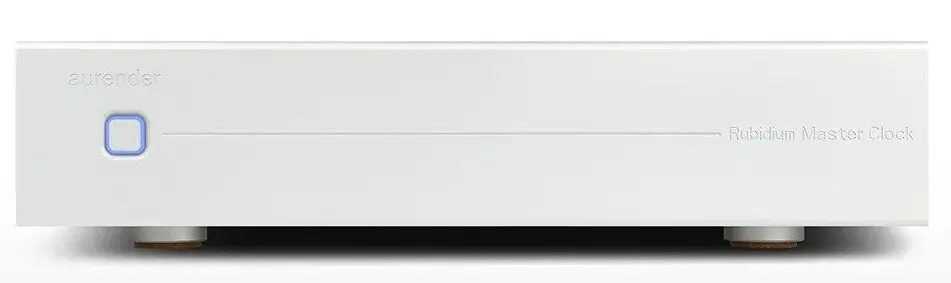

Aurender MC10 Master Clock

Aurender MC10 Master Clock

The Aurender MC10 Master Clock is a precision-engineered component designed for audio enthusiasts seeking the utmost accuracy and reliability in their audio systems. Boasting a 10MHz Master Clock Output powered by a Rubidium Master Clock, this device ensures that your audio playback maintains exceptional timing and synchronization. It offers two 10MHz outputs, each with 75Ω and 50Ω impedance options, delivering a stable 0.7Vrms signal with a tolerance of ±10%.

In terms of signal quality, the MC10's Rubidium-based clock is accompanied by impressive specifications. Its Phase Noise, a crucial factor in signal purity, is rated at less than -130dBc/Hz at 10Hz and less than -140dBc/Hz at 100Hz, guaranteeing minimal interference and distortion in audio playback. Additionally, the device excels in short-term stability, with a frequency accuracy of less than 2×10⁻¹¹ for 1 second, less than 1×10⁻¹¹ for 10 seconds, and less than 2×10⁻¹² for 100 seconds, ensuring precision that audiophiles demand.

The MC10 maintains a practical and robust design with dimensions of 430mm x 87mm x 370mm (16.9 inches x 3.4 inches x 14.6 inches) and a weight of 12.9kg (28.4lbs). It offers compatibility with both 110V and 220V input voltages, making it adaptable to different power environments. The device's power consumption is efficiently managed, drawing 5.7W in standby mode and up to 95W during startup, with a reduced 30W when in a locked state. This efficient power management ensures that the MC10 doesn't burden your electrical system unnecessarily.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Aurender MC10 Master Clock. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Aurender MC10 Master Clock more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Aurender MC10 Master Clock, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Aurender MC10 Master Clock Specifications:

• 10MHz Master Clock Output: Rubidium Master Clock: 10MHz 2ea. (75Ω), 2ea. (50Ω), 0.7Vrms (±10%)
• Phase Noise(Rubidium): < -130dBc / Hz (10 Hz)
  < -140dBc / Hz (100 Hz)
• Freq. Short-term Stability (Rubidium): <2×10⁻¹¹ (1 s)
  <1×10⁻¹¹ (10 s)
  <2×10⁻¹² (100 s)
• Phase Noise: < -130dB/Hz (10Hz)
  < -140dB/Hz (100Hz)
• Size (WxHxD): 430 x 87 x 370 mm
  16.9 x 3.4 x 14.6 inch
• Weight: 12.9kg, 28.4lbs
• Input Voltage: 110V / 220V
• Power Consumption: Standby: 5.7W / Power On: Start Warm-up (95W Max), State Lock (30W Max)
