Exploring the Ortofon MC X Series: Which Cartridge is Right for You?



Exploring the Ortofon MC X Series: Which Cartridge is Right for You?

Ortofon’s MC X Series represents a new wave in high-fidelity vinyl playback. Building on the solid foundation of the Quintet range, this series introduces a more refined, high-performance line of moving coil (MC) cartridges—all designed and assembled in Denmark.

While the models share core design elements—such as a honeycomb stainless-steel body, silver-plated pure copper coils, and a refined magnet system—the key differences lie in stylus shape, cantilever material, and sonic character. These factors have a profound effect on how the cartridge interacts with the grooves and conveys the music.

Let’s break down the differences between the MC X10, X20, X30, and X40 to help you choose the model that suits your setup and listening preferences.

MC X10 – Entry-Level Excellence (£269)

  1. Stylus: Bonded elliptical
  2. Cantilever: Aluminium
  3. Tracking force: 2.3g
  4. Output voltage: 0.35mV
  5. Recommended load impedance: ≥20 ohms

Overview: The MC X10 is a great first step into the world of moving coil cartridges. Its bonded elliptical stylus offers solid tracking and resolution while remaining forgiving with older or slightly worn records.

Sound Character: Clean, energetic sound with a punchy midrange and lively presentation.

Ideal for: Newcomers to MC cartridges, budget-conscious audiophiles, or secondary systems.

MC X20 – Enhanced Precision (£429)

  1. Stylus: Nude elliptical
  2. Cantilever: Aluminium
  3. Tracking force: 2.3g
  4. Output voltage: 0.35mV

Overview: Upgrading from a bonded to a nude elliptical stylus significantly improves tracking and detail.

Sound Character: Smoother treble, improved imaging, and better dynamic range.

Ideal for: Listeners seeking a more natural, composed sound.

MC X30 – High-Fidelity Sweet Spot (£599)

  1. Stylus: Nude Fine-Line diamond
  2. Cantilever: Aluminium
  3. Tracking force: 2.3g
  4. Output voltage: 0.35mV

Overview: The Fine-Line stylus enables deeper groove tracing and improved detail retrieval.

Sound Character: Heightened detail, wider soundstage, and more immersive listening.

Ideal for: Listeners seeking strong musical insight and realistic presentation.

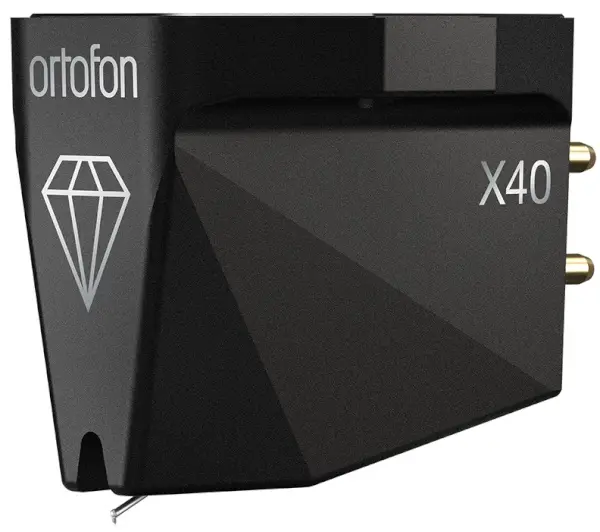

MC X40 – Reference-Level Performance (£875)

  1. Stylus: Nude Shibata
  2. Cantilever: Boron
  3. Tracking force: 2.3g
  4. Output voltage: 0.35mV

Overview: Combining a Shibata stylus with a boron cantilever, the MC X40 delivers reference-grade resolution.

Sound Character: Wide soundstage, ultra-precise imaging, and excellent micro-dynamics.

Ideal for: High-end systems and audiophiles seeking ultimate fidelity.

Comparison Table

Model Stylus Type Cantilever Price Sound Character
MC X10 Bonded Elliptical Aluminium £269 Lively, dynamic, great entry into MC
MC X20 Nude Elliptical Aluminium £429 Smoother, more detailed, refined tracking
MC X30 Nude Fine-Line Aluminium £599 Natural, revealing, immersive soundstage
MC X40 Nude Shibata Boron £875 Hyper-detailed, refined, full-range presentation

Choosing the Right Cartridge for You

  1. Just starting out? The MC X10 offers a taste of MC clarity without complication or high cost.
  2. Want more finesse? The MC X20 builds on the X10 with better tracking and musical balance.
  3. Looking for a standout performer? The MC X30 offers a serious upgrade in detail and immersion.
  4. Ready for true reference sound? The MC X40 unlocks the full potential of your records and system.

Final Thoughts

Ortofon’s MC X range is thoughtfully designed for progressive improvement. Each step introduces tangible sonic benefits, allowing you to match a cartridge not just to your system, but to your listening habits and musical preferences. Whether you're entering the world of moving coil or striving for ultimate fidelity, the MC X series offers a cartridge that fits the journey.

For more information about the Ortofon Cartridges call us on 01482 223096 or email shop@fanthorpes.co.uk
