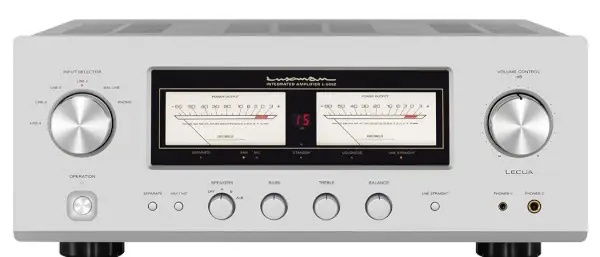

LUXMAN L-505Z: The Latest Addition to the Z Series Integrated Amplifiers

Luxman L-505Z Integrated Amplifier : The Latest Addition to the Z Series Integrated Amplifiers

The LUXMAN L-505Z integrated amplifier is a cutting-edge addition to the Luxman Generation Z series, reimagining high-fidelity sound with advanced technology and thoughtful design. Inspired by the legacy of our L-505 model, which has captivated audiophiles for years, the L-505Z combines the best elements of our high-end models while introducing new, innovative features. With the introduction of the LIFES amplifier feedback engine, this amplifier delivers a new level of performance, offering music enthusiasts a thrilling audio experience that sets a new standard for integrated amplifiers.

LIFES Version 1.0: The Next-Gen Amplification Engine

At the heart of the L-505Z is LUXMAN's revolutionary LIFES (Luxman Integrated Feedback Engine System) Version 1.0. This advanced amplification feedback engine draws on the principles of our ODNF (Only Distortion Negative Feedback) circuitry but pushes them further. By minimizing distortion and simplifying the circuit design, LIFES delivers unparalleled sound quality, capturing the purity and dynamic range of the music.

With an output power of 100W + 100W (8Ω) and 150W + 150W (4Ω), the L-505Z's Class AB power amplifier offers robust performance, capable of handling even the most demanding musical passages with clarity and precision. Whether you're listening to delicate acoustic compositions or powerful rock performances, the L-505Z ensures every note is faithfully reproduced.

Precision Volume Control with LECUA Technology

The L-505Z features LUXMAN’s proprietary LECUA (Luxman Electronically Controlled Ultimate Attenuator) technology, offering 88-step precision volume control. This electronically controlled attenuator minimizes sound quality degradation across all volume levels, ensuring a smooth, natural listening experience. Even when adjusting balance or using remote control functions, the L-505Z maintains optimal sound quality, thanks to the LECUA system’s innovative design.

Superior Preamp with Discrete Buffer Circuitry

The L-505Z's preamp section is built to drive the power amplifier with energy-rich, high-fidelity signals. Equipped with discrete buffer circuitry, the preamp delivers enhanced driving power while preserving the purity of the musical signal. This results in an expressive, dynamic soundstage that far surpasses expectations for an integrated amplifier in this class.

The L-505Z also includes a high-quality phono EQ amp circuit, compatible with MM and MC cartridges, offering exceptional analog playback that rivals high-end standalone phono stages. Vinyl enthusiasts will appreciate the L-505Z’s ability to reproduce their records with rich, detailed sound.

Power Supply and Build Quality: The Beating Heart of the L-505Z

A high-performance power supply is essential for delivering consistent, distortion-free sound. The L-505Z’s 540VA large-capacity EI-type power transformer, combined with custom-made 10,000μF filter capacitors, provides the necessary power to handle any musical demand. Whether it's a subtle passage or a soaring crescendo, the L-505Z maintains stable output and reproduces even the most dynamic music with precision.

Every aspect of the L-505Z's design has been crafted with sound quality in mind. LUXMAN's “Bee-Line” construction reduces signal path length, while OFC copper wiring ensures natural signal transmission. The loop-less chassis suppresses ground impedance, further enhancing sound clarity.

Iconic Design Features

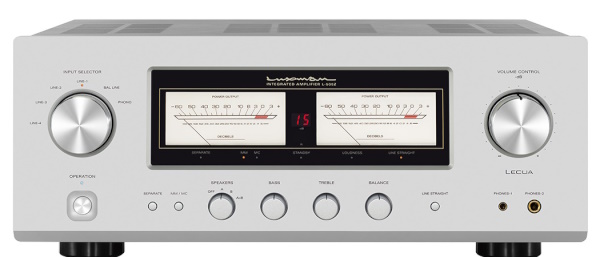

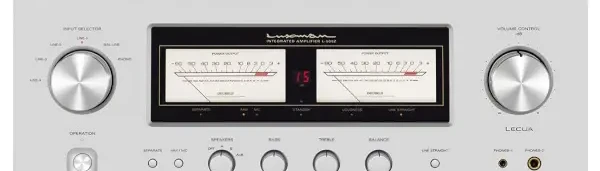

The L-505Z blends traditional aesthetics with modern functionality. It boasts large needle VU meters, illuminated by white LED back-lighting, and a new 7-segment LED level display that allows for easy monitoring of volume levels. This combination of classic design and advanced technology offers both visual appeal and practical functionality.

Enhanced Headphone Listening

For those who enjoy intimate listening sessions, the L-505Z offers an outstanding headphone output. Equipped with a φ4.4mm terminal featuring independent grounding for left and right channels, and separate unbalanced amplifiers, this amplifier ensures a superior listening experience with excellent channel separation and three-dimensional sound.

Flexible Connectivity and Features

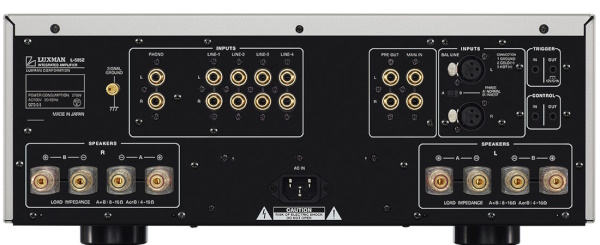

The L-505Z is designed to accommodate a wide range of setups. It includes proprietary tone controls, loudness, LR balance adjustment, and a bi-amp configuration option, making it easy to integrate into any audio system. The rear panel is equipped with high-quality RCA input/output terminals that are compatible with larger plugs, and robust speaker terminals that support Y-lugs and banana plugs for added convenience.

Conclusion: The Future of High-End Audio

The LUXMAN L-505Z redefines what an integrated amplifier can be, combining cutting-edge technology with luxurious design and uncompromising sound quality. Whether you’re a seasoned audiophile or a newcomer to high-end audio, the L-505Z offers an immersive listening experience that will enhance your appreciation for music. Step into the future of audio with the LUXMAN L-505Z and discover a new era of heartfelt sound.
