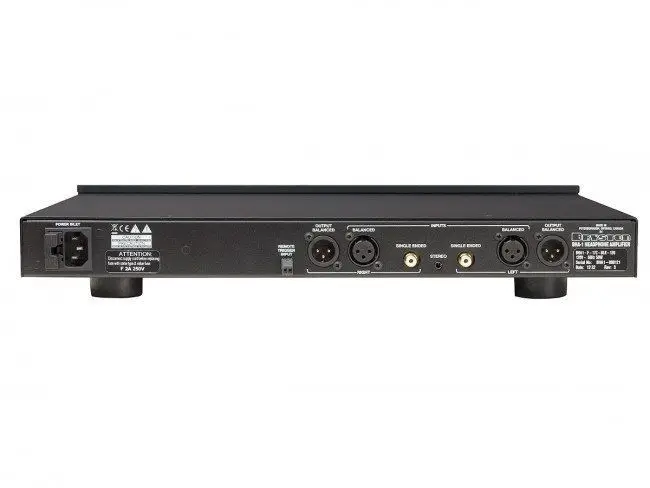

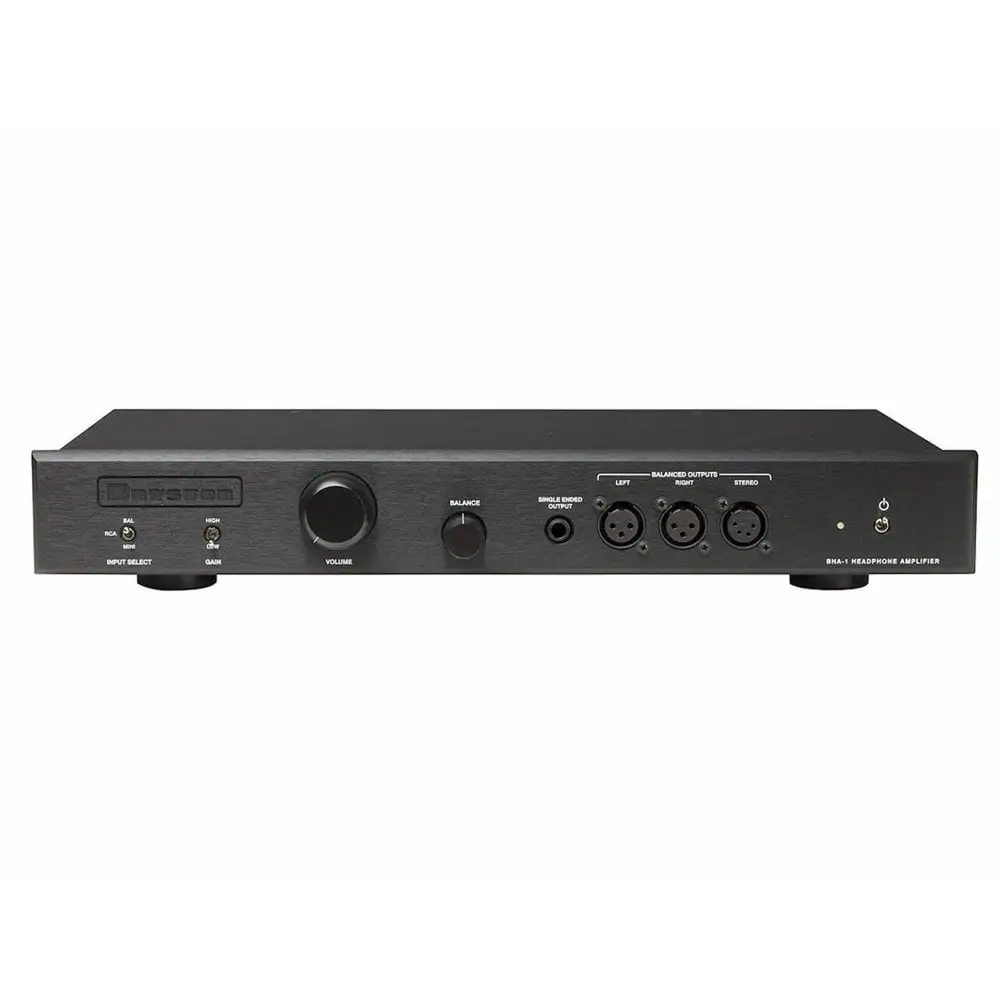

Bryston BHA-1 Headphone Amplifier

Bryston BHA-1 Headphone Amplifier

The Bryston BHA-1 headphone amplifier is on demonstration in our Hull Store by request.

The Bryston BHA-1 headphone amplifier is compatible with single-ended and balanced headphones. The advantage of powering each headphone driver (right and left) with two amplifiers configured in balanced or series mode is a doubling of the signal voltage to each speaker.

This design configuration has been the foundation of Bryston's legendary 7B, 14B and 28B amplifiers and now headphone users can experience the same dramatic resolution from the Bryston BHA-1 headphone amplifier.

The Bryston BHA-1 headphone Amplifier employs the vast benefits of balanced amplifier designs that are inherently clean and stable especially when there is a demand for higher power and/or a difficult load to drive.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Bryston BHA-1 Headphone Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Bryston BHA-1 more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Bryston BHA-1 Headphone Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Bryston BHA-1 Headphone Amplifier Specification:

• Balanced Dual mono circuitry
• High Quality Noble Stereo Volume control
• laser trimmed
• Left/Right Balance Control
• 6 Fully discrete Class A Bryston operational amplifiers
• Balanced outputs 4 pin stereo and dual left/right
• 3 pin outputs
• Stereo ¼ inch single ended outputs
• 14dB or 20dB of selectable gain available
• All input and output connectors are Gold plated
• 10k input impedance
• Multiple headphone drive capability
• power options: Standard: high quality Bryston internal analog
• power supply
• Optional: MPS-2 power supply also available
• (replaces internal supply).
• Harmonic Distortion: Less than .003 at 32 ohms at 100mW 20Hz to 20KHz.
• IM Distortion: Less than 001%
• Signal to Noise: Greater than 105dB
• Frequency response: 20 to 20KHz plus or minus .1dB
• Weight 8lbs (3.6 kg)
• Dimensions: (H) - 3.125 inches x (W) 17
• HI-Z load: 20 Volts into 600 ohms
• (667mW) at 001% THD + N at 20-20K
• Low-Z load: 4 volts into 32 ohms (500 mW) at 001%
• THD + N at 20-20K
