Cyrus PSU-XR Power Supply

Cyrus PSU-XR Power Supply

The Cyrus PSU-XR Power Supply is available for demonstration in our Hull store by request.

The PSU-XR builds upon our extensive legacy in Power Supply design. Beginning with the original PSX, Cyrus has always led the field in producing clean, stable and ‘stiff’ external upgrade power supplies. ‘Stiffness’ is essential, Even when heavy loads are applied, the voltage has to remain completely stable. The PSU-XR employs the largest toroidal transformer we have ever used, coupled with some amazingly efficient load management circuits to deliver a staggering amount of power.

THREE DIFFERENT SUPPLIES

Able to deliver ‘exact’ power requirements to three different circuits on the host product, the PSU-XR significantly enhances the performance of any XR product it is used with. Advanced, microprocessor controls, relay switching, completely separated ‘Grounds’ to virtually eliminate the transfer of ‘noise’ and a future-proof architecture are just some of the special features of this upgrade power supply.

DIGITALLY ADDRESSED VOLTAGES

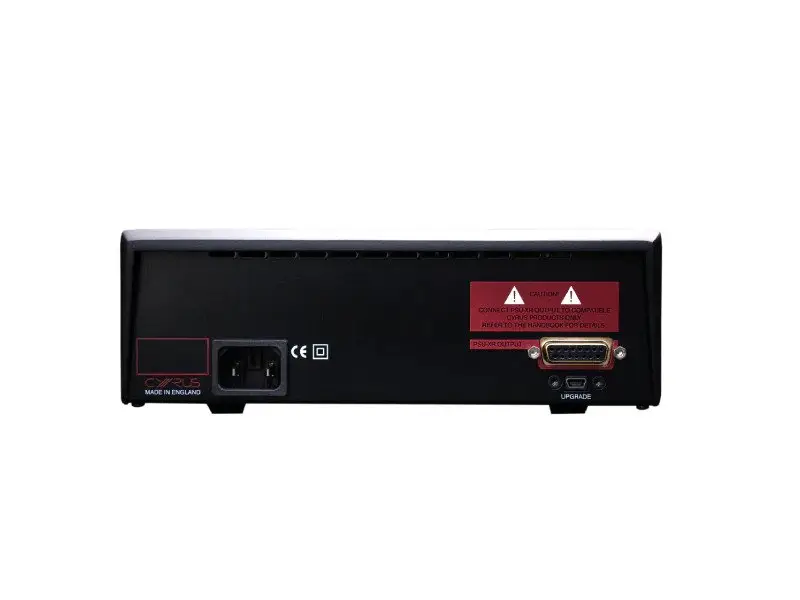

The PSU-XR communicates with the host-product via the 15pin bus lead to determine the exact voltage requirements of the various circuits to receive the additional power.

The PSU-XR then controls the output voltage using an 8-bit digital gate, allowing 256 different (and precise) voltage steps for the output rails.

NO SHARED 'GROUND'

The PSU-XR is able to supply three different circuits in the host product with power.

In order to preserve the purity of the power to each of these circuits, the different power sections of the PSU-XR have completely separate ‘grounds’. This virtually eliminates the possibility of system ‘noise’ from one section of the host product being transferred to another section.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Cyrus PSU-XR Power Supply. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Cyrus PSU-XR more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Cyrus PSU-XR Power Supply, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Cyrus PSU-XR Specification:

• Low voltage supply - Standby mode +5V DC
• Low voltage supply - Operational +5V DC
• Fixed voltage supply - Standby mode 0V
• Fixed voltage supply - Operational +24V DC
• Variable supply - Standby mode 0V
• Variable supply - Regulated +10V to +45V DC
• Variable supply - Unregulated +45V or +56V DC
• Size (H x W x D) 75 x 215 x 355 mm (2.95” x 8.46” x 13.98”)
• Weight 7.7kg (17lbs)
