Exposure XM3 Phono Stage

Exposure XM3 Phono Stage

The Exposure XM3 Phono Stage is available for demonstration in our Hull store by request.

The Exposure XM3 Phono Stage has been designed as a high quality phono stage to cater for moving magnet and moving coil users, offering a higher quality phono stage than is available in some of the XM Series components for users of higher quality turntables.

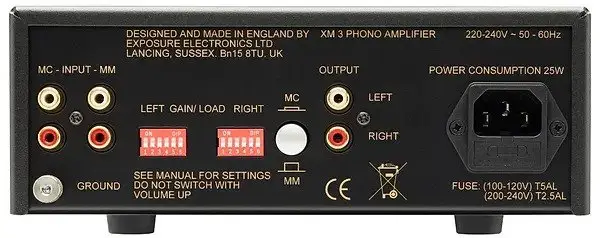

The rear panel of the Exposure XM3 Phono amplifier provides independent moving magnet and moving coil cartridge RCA inputs.

Micro switches allow for individually selecting the correct values for left and right channels when using normal and high output Moving Coil cartridges.

A pair of pre-outputs then connect to a line level input of the amplifier.

The XM3 Phono amplifier has been designed to compliment the sound quality of the XM Series components.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Exposure XM3 Phono Stage. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Exposure XM3 more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Exposure XM3 Phono Stage, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Exposure XM3 Phono Stage Specification:

• Moving Magnet Input
• Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
• Signal to Noise ratio, ref 1KHz & 350mV out : Gain Switch 4 ON : >70dB
• Gain Switch 4 OFF : >78dB
• Moving Coil Input
• Sensitivity : 350uV input for 350mV output, 60dB gain setting
• Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)
• General Specifications
• Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
• Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input : Maximum Ouput Voltage : 7.8V RMS 1KHz
• Output Impedance : 50 ohms
• Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
• Power Consumption : <25W
• Dimensions (WxHxD) : 218mm x 89mm x 348mm
• Net Weight (unpacked) : 4kg
• Gross Weight (packed) : 5kg
