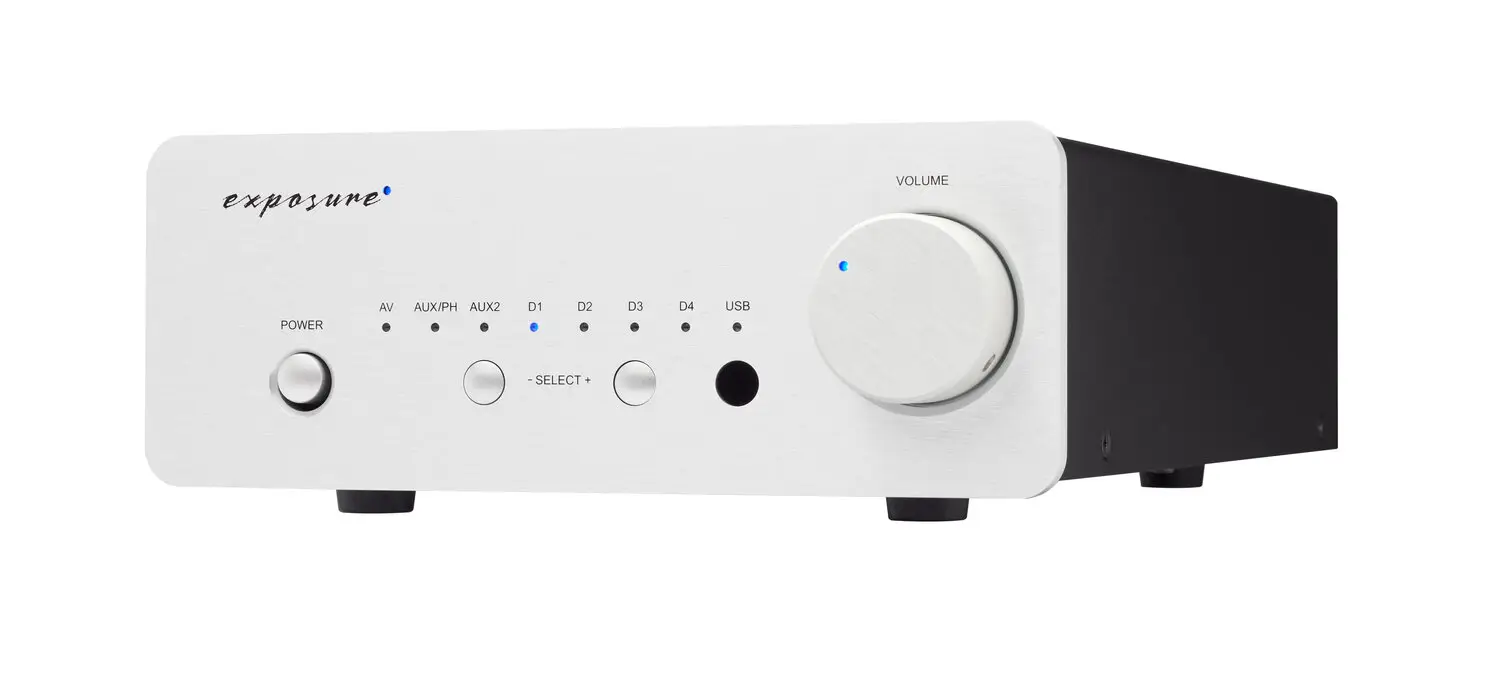

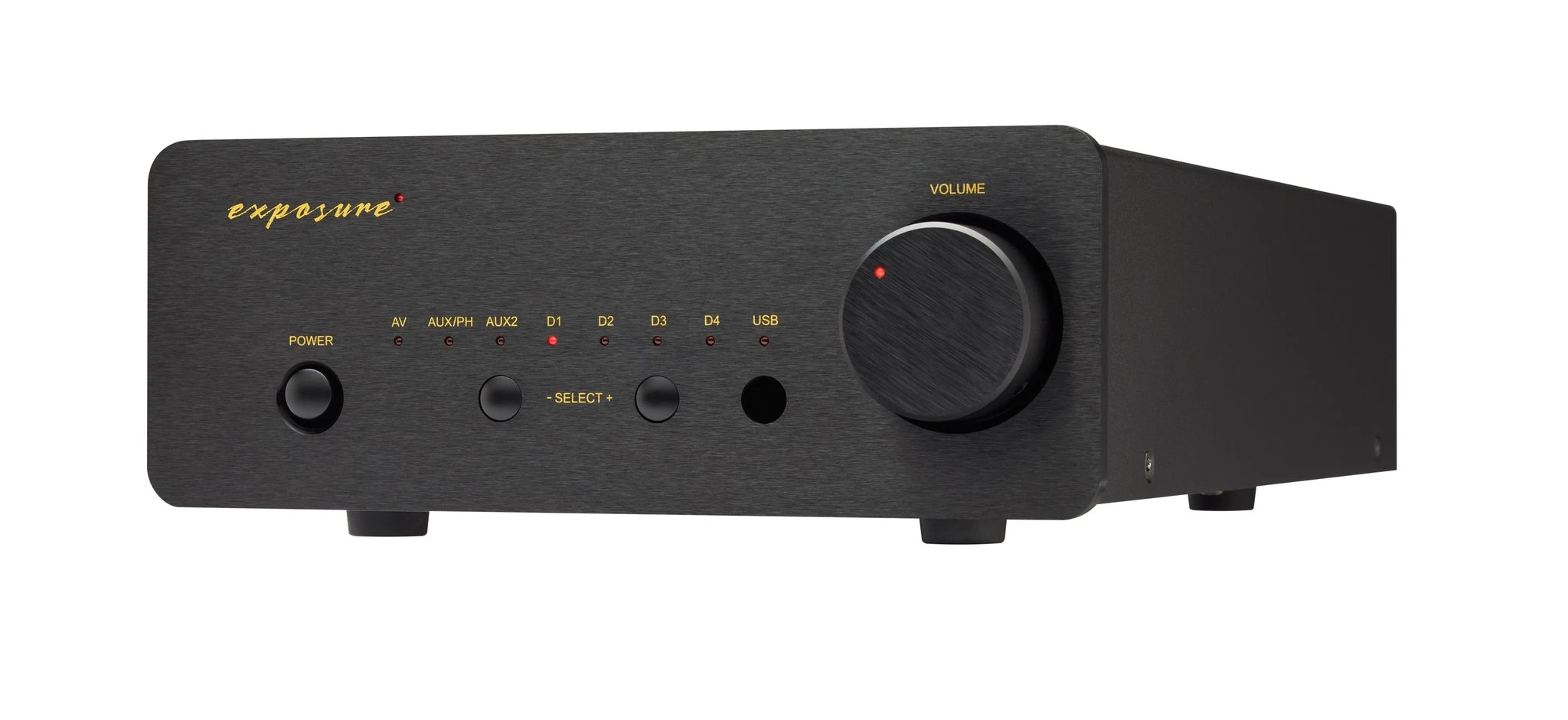

Exposure XM7 Pre-Amplifier

Exposure XM7 Pre-Amplifier

The Exposure XM7 Pre-Amplifier is available for demonstration in our Hull store by request.

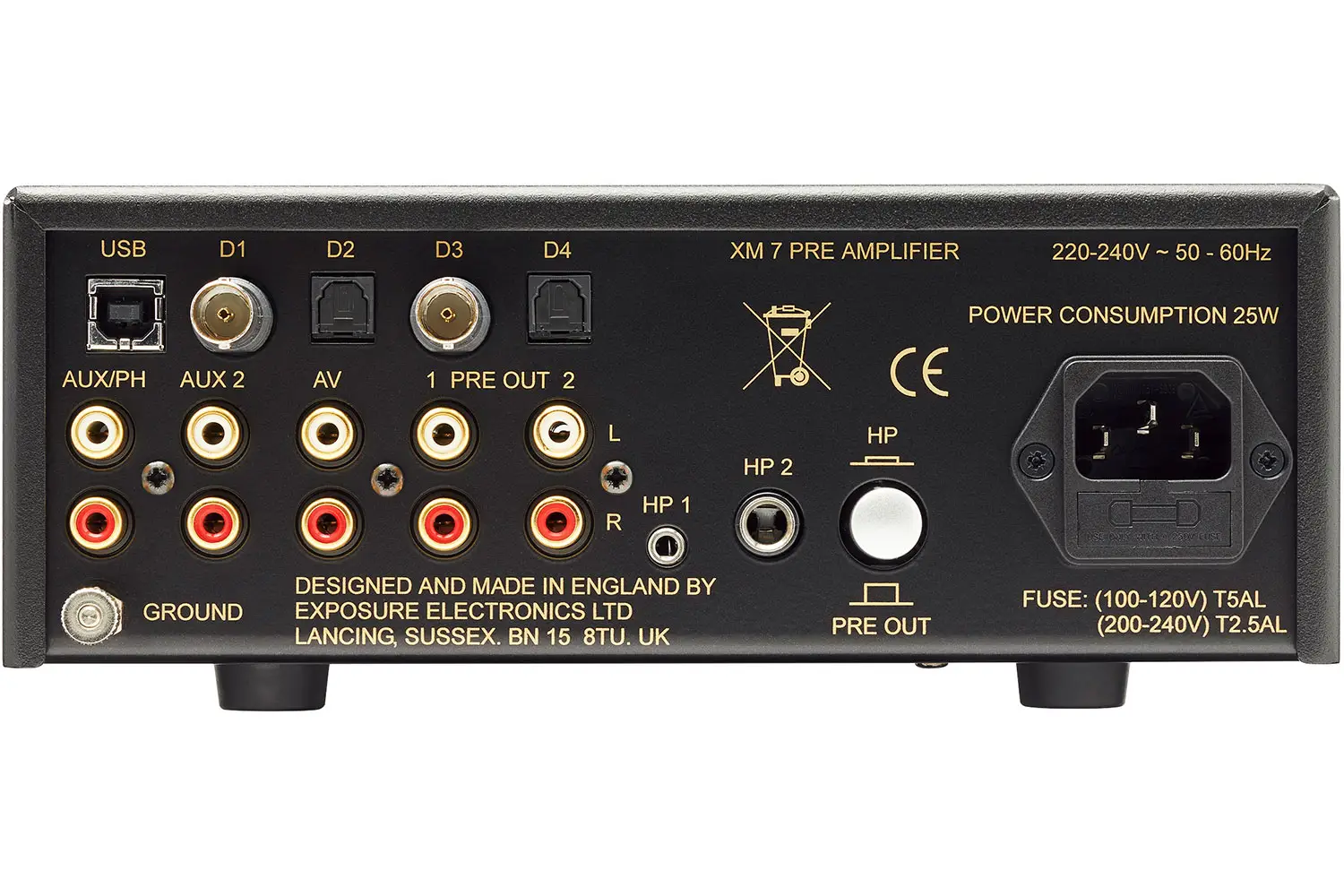

The Exposure XM7 pre-amplifier provides three analogue inputs, which include a high quality MM phono stage and an AV bypass input for incorporation into a home theatre system.

Digitally, there are two optical and two coax BNC digital inputs, plus an asynchronous USB input.

Two pairs of analogue pre-outputs allow the addition of power amplification or a subwoofer.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Exposure XM7 Pre-Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Exposure XM7 more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Exposure XM7 Pre-Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Exposure XM7 Pre-Amplifier Specification:

• Analogue Inputs
• Pre Amplifier Output: (input sensitivity / impedance / S/N)
• AV input fixed level: 450mV @ 1KHz > 12K ohms S/N > 95dB
• AUX/PH input MM: 2.5mV @ 1KHz, 47K ohms S/N > 73dB
• Frequency Response: +/-0.5dB 50Hz-20KHz. High pass roll off -1.5dB @ 20Hz
• AUX 2 input line: 350mV @ 1KHz > 14K ohms S/N output gain x3.75, +11.5dB
• Total Harmonic Distortion: <0.005% at 1KHz : @ 1.3V RMS output
• Frequency Response: 20Hz - 20KHz +/- 0.5dB
• Signal to Noise Ratio: ref 1.3V RMS Output : 1KHz >92dB
• Channel Separation: @ 20KHz : >60dB
• Digital Inputs
• SPDIF inputs: BNC Coax & Optical : 32 - 192KHz @ 16-24 bits
• Total Harmonic Distortion: <0.005% at 1KHz @ 1.3V RMS output
• Signal to Noise Ratio: ref 1.3V RSM Output : 1KHz : >98dB
• USB input: Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host
• Headphone Output
• Output Impedance: 10 ohms
• Maximum Level into 33 ohms: @ 1KHz & 0.1% THD : 5V RMS
• Total Harmonic Distortion: @ 2V output, 1KHz : <0.03%
• Maximum Level into 330 ohms: @ 1KHz & 0.1% THD : 8V RMS
• Total Harmonic Distortion: @ 2V output, 1KHz : <0.01%
• General Specifications
• Mains Supply: 110/120V or 220/240V @ 50/60Hz (factory set)
• Power Consumption: <25W
• Dimensions (WxHxD): 218mm x 89mm x 363mm (inc knob)
• Net Weight (unpacked): 5kg
• Gross Weight (packed): 6kg
