Graham Slee Jazz Club Phono Stage

From £749

  • 2 Years warranty

Graham Slee Jazz Club Phono Stage

A moving magnet phono stage for your whole record collection – from modern LPs right back to 78s. Hand-built in Britain by Graham Slee, it restores the original tonal balance of old records that a standard phono stage can’t. Demonstrations may be possible by arrangement with Graham Slee – just ask.

Why Old Records Sound Wrong

Before the RIAA standard arrived in the 1950s, record labels used their own equalisation. Play an early LP or a 78 through a normal phono stage and it gets RIAA applied regardless – so the tonal balance is off. The Jazz Club has switches to match the EQ each label actually used.

Using It

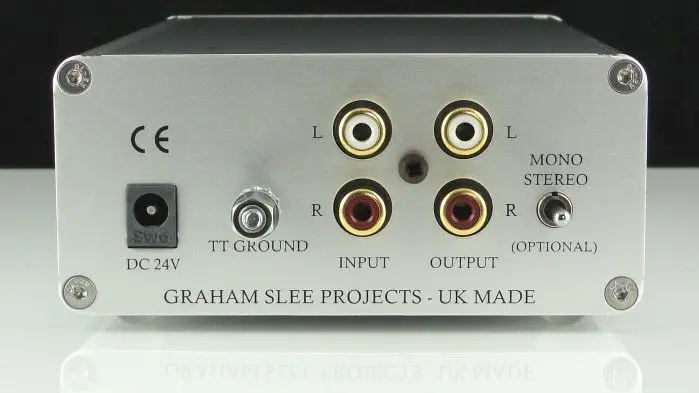

For modern records, set the switches to RIAA and it works as a great-sounding MM phono stage. For older records, look up the record label in the EQ tables supplied with it and set the three switches to match. The rear-panel mono switch sums left and right to cut the swish from slightly off-centre mono records.

In the Box

  • Jazz Club phono stage
  • PSU1 remote power supply – keeps transformer hum away from your cartridge
  • Old record EQ information sheet

Good to Know

  • Works with moving magnet, high-output moving coil and moving iron cartridges
  • For a dedicated mono cartridge, a shorting plug is needed on the unused input – ask us
  • Want a newer design? The Graham Slee Revelation is its successor, with the same archival EQ
  • The Graham Slee Majestic DAC preamp has an analogue input to suit it

Stereophile praised its “outstanding sound as a standard MM/RIAA phono section”.

Part Exchange Available

We offer a generous part exchange on the Jazz Club. Call 01482 223096 or email shop@fanthorpes.co.uk with what you've got and we'll give you a price to change.

Finance Available

Buy now pay later is available – spread or defer your payments over a year. Email shop@fanthorpes.co.uk or call 01482 223096 and we'll send you an application.

Specification

  • Input range: 2mV to 10mV
  • Output (for input range): 252mV to 1,260mV (1.26V)
  • Maximum input: 39mV rms
  • Maximum output: 4.914V rms
  • Gain: 42dB (126) at 1kHz
  • Input impedance: 47k Ohms plus 100pF
  • Output (driving/source) impedance: 1.2k Ohm
  • Recommended load impedance: 10k Ohm or greater
  • Noise at output: -65dB CCIR Q-pk
  • Distortion: 0.02%
  • EQ curve accuracy: < 0.5dB
  • Channel balance: 0.2dB
  • Channel separation: 64dB
  • Size (approx.): W107 x H50 x D180 mm inc. jacks
