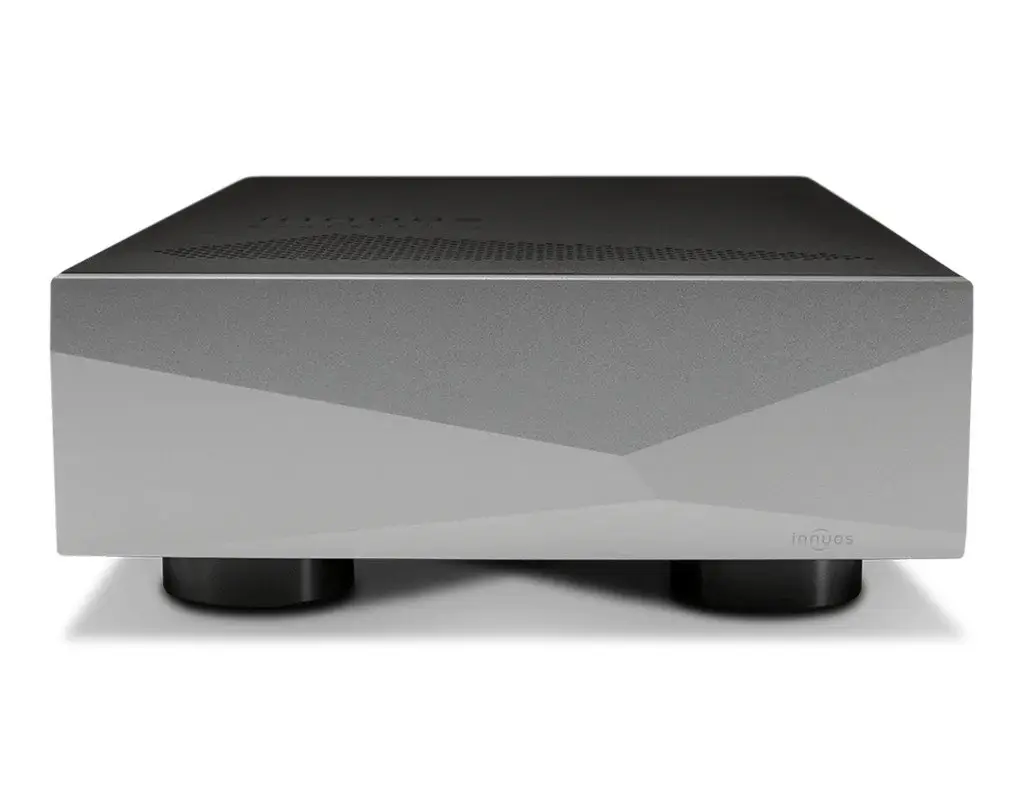

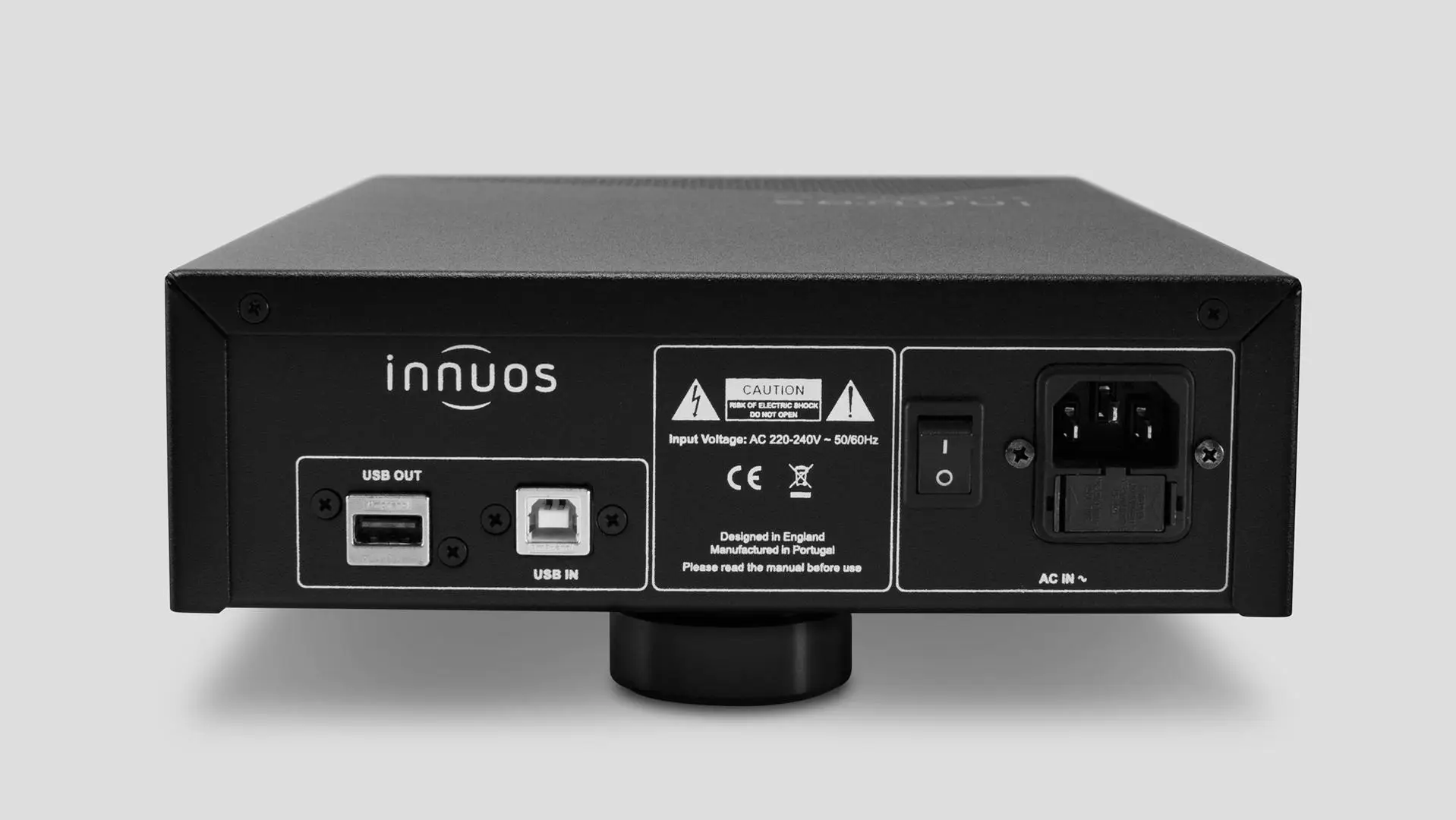

Innuos Phoenix USB Reclocker

Innuos Phoenix USB Reclocker

The Innuos PhoenixUSB is £2599, when you bundle it with the any new ZEN Series, PULSE Series, or STATEMENT. Click here for more information.

The PhoenixUSB offers in one unit the equivalent of 3 separate components: A USB regenerator,a linear power supply and an external master clock with its own linear power supply.

Innuos applied 3 main design approaches learning from their experience with the Innuos flagship music server, the STATEMENT.

The USB chip regenerating the signal contains no switching regulators. All 3 independent voltages to the chip originate from an independent linear power supply with further regulation provided by 3 sets of LT3045 regulators.

The use of a 3ppb OCXO clock running directly at 24MHz and connected via a board track just a couple of inches away from the USB chip. Therefore, no precision is lost within cables and connectors, as is the case when using an external master 10MHz clock with an additional 24MHz clock generator.

Two independent Statement-level linear power supplies, one dedicated to the OCXO clock and the other used for powering the USB chip/5V USB line.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Innuos Phoenix USB Reclocker. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Innuos Phoenix more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Innuos Phoenix USB Reclocker, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Innuos Phoenix USB Reclocker Specification:

• Mains Supply: 230V AC / 115V AC – 2x Internal Linear Power Supply
• Power Consumption: 3W idle, 7.5W peak
• Dimensions: 215mm x 342mm x 87mm (W x D x H)
• Weight: 5 Kg
• In the box: PhoenixUSB Reclocker, Mains Cable, USB Cable, Getting Started guide
