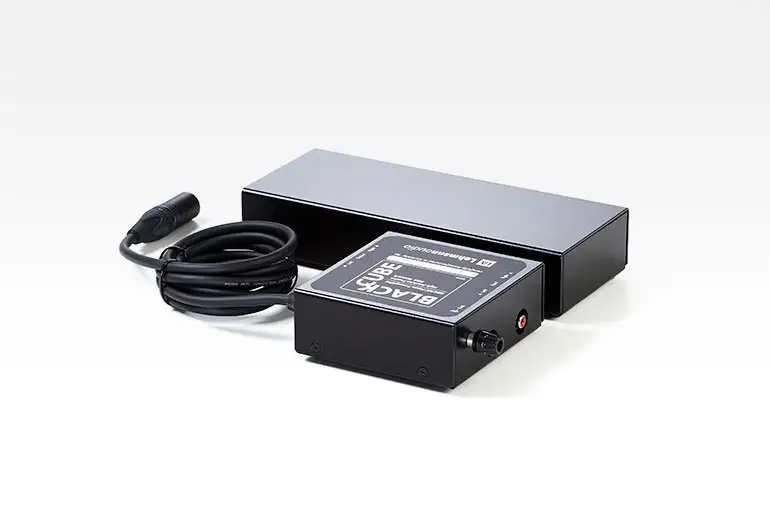

Lehmann Black Cube SE Phono Stage

Lehmann Black Cube SE Phono Stage

The Lehmann Black Cube SE Phono Stage is available for demonstration in our Hull store by request.

A special 30 VA toroidal transformer of the PWX power supply is the main reason for the sonic performance achieved with the Lehmann Black Cube SE Phono Stage. This transformer is not only over dimensioned but even sports a grounded isolation coil between the primary and secondary coil. The results: much more bass authority, a more liquid midrange as well as more openness. These sonic benefits are without any doubt the reasons that more and more music lovers choose the Black Cube SE right from the start.

The Lehmann Black Cube SE Phono Stage is compatible with practically all available cartridges on the market from High Output MM to MC. Apart from the standard switch settings there is one onboard slot that can be fitted with a custom impedance to supply perfect termination even for the most exotic cartridges. No more need for expensive impedance plugs!

The input stages used in the Lehmann Black Cube SE Phono Stage can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors. All resistors are of the low noise metal film variety. The switches for gain and load settings have gold plated contacts.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Lehmann Black Cube SE Phono Stage. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Lehmann Black Cube SE more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Lehmann Black Cube SE Phono Stage, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Lehmann Black Cube SE Phono Stage Specification:

• Gain at 1kHz: 40dB MM / 61dB MC
• S/N ration (Eff. Unw.): 77dB MM / 69dB MC
• Input Capacitance: 100pF
• Input Impedances:
• 47 kΩ, 470Ω, 100Ω (Switchable)
• 1 Slot For A Custom Load.
• Output Impedance: <100Ω
• RIAA Filter:
• Passive Equalization Between
• To Linear Gain Stages
• Inter-Channel Mismatch: Typ. 0,5dB
• Power Consumption: < 3W; External PWX Power Supply, (2x15V DC)
• Dimensions (W x D x H):
• Audio Section - 113 x 108 x 45mm³
• Power Supply - 233 x 93 x 45mm³
• Weight:
• Audio Section Approx. 0,4kg
• Power Supply Approx. 1,0kg
