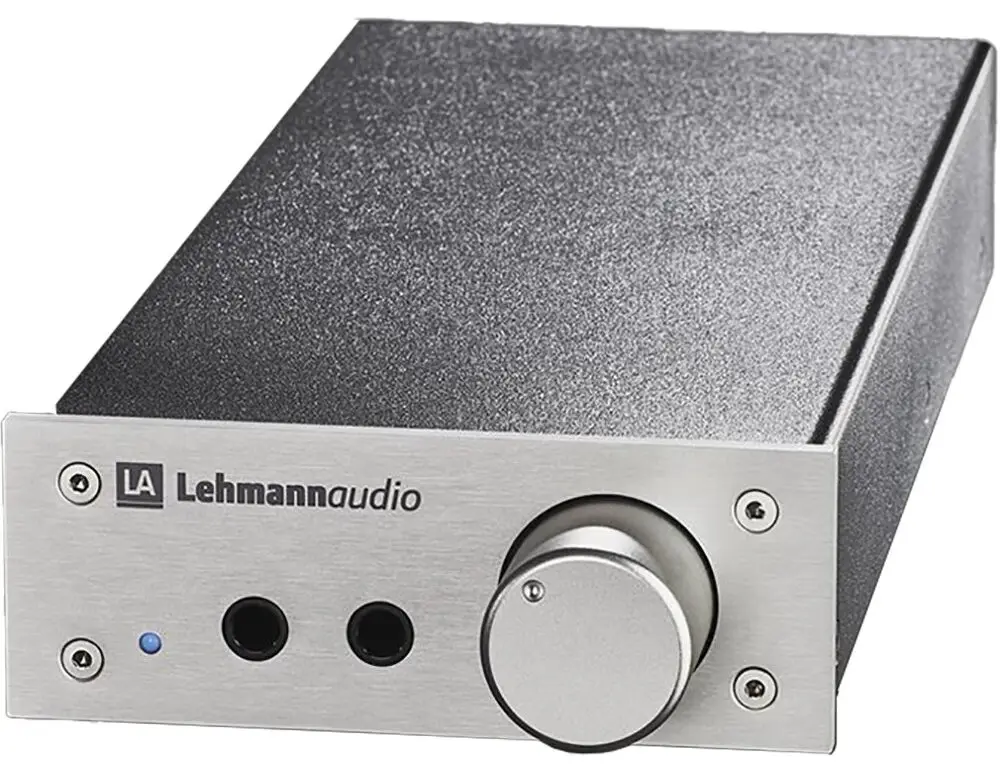

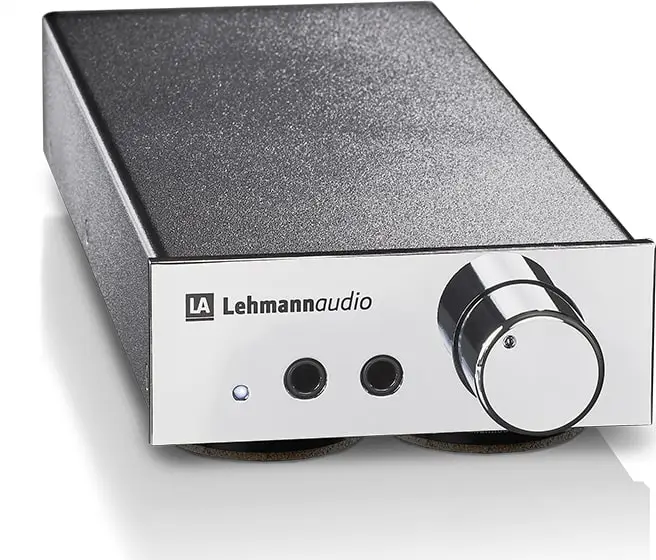

Lehmann Linear II Headphone Amplifier

Lehmann Linear II Headphone Amplifier

The Lehmann Audio Linear II Headphone Amplifier is a practical and no-frills audio device designed to elevate your headphone listening experience. Featuring a straightforward headphone output, it comes equipped with two 6.3mm jack ports, ensuring compatibility with various headphones. The amplifier offers a reliable output power of 200mW at 300 ohms, delivering a clean and consistent audio signal.

In terms of audio quality, the Linear II boasts an impressive signal-to-noise ratio of over 100 dB at 0dB Gain, reducing unwanted noise and ensuring a clear sound output. The headphone output impedance stands at 5 Ω, providing a stable and balanced connection to your headphones. With a remarkably low total harmonic distortion (THD) of less than 0.001% at 6mW and 300 ohms, this amplifier maintains audio fidelity even at lower volumes. Its frequency response spans from 10Hz (-0.3dB) to 35kHz (-1dB), offering a wide range for an accurate representation of your music. Furthermore, the amplifier excels in channel separation with over 70dB at 10kHz, ensuring distinct and clear audio in each channel. The Linear II offers various gain settings at 0, 10, 18, or 20 dB, allowing you to tailor the sound output to your preference. Additionally, it provides a variable analogue output with 1 x RCA Pair for further audio connectivity, and it operates efficiently with a maximum power consumption of 10 W. Measuring at 110 x 50 x 280 mm and weighing 1.5 kg, this amplifier's compact and lightweight design makes it a versatile addition to your audio setup. It also features an RCA line input, providing flexibility in connecting your audio sources.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Lehmann Linear II Headphone Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Lehmann Linear II Headphone Amplifier more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Lehmann Linear II, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Lehmann Linear II Headphone Amplifier Specifications:

• Headphone Output
  2 x 6.3mm Jack
• Headphone Amp Output Power
  200mW @ 300 ohms
• Headphone Amp Signal-to-Noise Ratio
  (@ 0dB Gain) > 100 dB
• Headphone Output Impedance
  5 Ω
• Headphone Amp THD
  (6mW / 300 ohms) < 0.001 %
• Headphone Amp Frequency Response
  10Hz (-0.3dB) - 35kHz (-1dB)
• Headphone Amp Channel Separation
  > 70dB @ 10kHz
• Headphone Amp Gain
  0, 10, 18, or 20 dB
• Variable Analogue Output(s)
  1 x RCA Pair
• Maximum Power Consumption
  10 W
• Dimensions (W x H x D)
  110 x 50 x 280 mm
• Weight
  1.5 kg
• RCA Line Input(s)
  1
