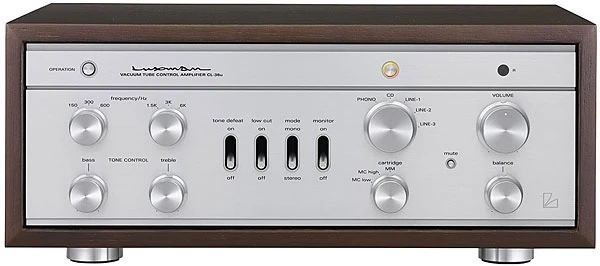

Luxman CL-38uC Pre Amplifier

Luxman CL-38uC Pre Amplifier

The Luxman CL-38uC Pre Amplifier is available for demonstration in our Hull store by request.

The Luxman CL-38uC uses SRPP (Shunt Regulated Push Pull) circuitry for all stages to achieve the highest sound quality possible.A genuine phono equalizer is included, the MC-low and MC-high impedance (gain) inputs each have independent MC transformers and are selectable using the MC impedance lever switch.Tone controls enable the listener to fine tune the sound quality.Refined exterior design and newly added balanced inputs make this vacuum tube control amp a new standard for its generation.

Since the launch of the Luxman SQ-5A vacuum tube integrated amplifier in 1961, Luxman have continued making vacuum tube amps without a break. Having produced many models that are highly valued as signature models and satisfied music lovers are enjoying them to this day, even several decades after their release. The CL-38uC Pre Amplifier and MQ-88uC combine LUXMAN's history of producing fine vacuum tube products and the traditional wisdom and skills gained along the way.

Due to their relatively simple circuitry, vacuum tube amplifiers are greatly affected by the quality of individual components, hence we utilize LUXMAN's own high-quality transformers and blocking capacitors. Further customization comes in the form of Nichicon made, high voltage, metalized polypropylene film coupling capacitors, which have been introduced for their supple, natural tone. Improved audio quality has been realized by shortening the internal wiring.

Each Luxman CL-38uC control amplifier undergoes a final performance check after a 48 hour aging process following assembly. We have selected JJ Electronic (Slovakia) vacuum tubes for these models as they are renowned for their reliability, long life and the ease with which they operate at vacuum tube amplifier voltages and heat dissipation conditions.

Luxman retained the outer wooden case, as it represents the tradition of the 38 series. The Luxman CL-38uC Pre Amplifier chassis has been expanded to a width of 440mm which is the standard size for current Luxman products. The internal chassis acts as an omnidirectional shielded metal enclosure. In order to prevent magnetic flux leakage and eliminate noise, the toroidal power transformer and choke transormer have integral shielded cases.

The Luxman CL-38uC's SRPP circuitry, used for the phono equalizer section, tone control section and amp section, ensures a flat frequency response and has other advantages, such as a low output impedance (300 ohm), low distortion and extended vacuum tube life. The elegant construction of such a control amplifier in a dedicated enclosure allows us ample space to mount a full complement of vacuum tubes inside, realizing clear and accurate musical expression and enviable sound quality which we feel will attract many music lovers and enthusiasts.

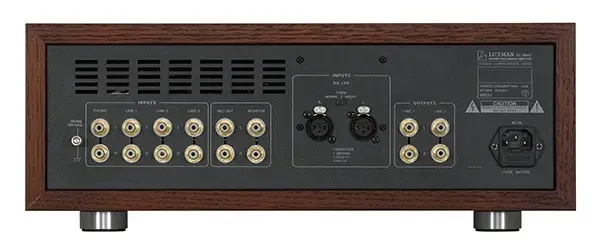

The Luxman CL-38uC balanced input terminals have dedicated transformers, improving integration with other high-end equipment. The built-in phono equalizer circuit is compatible with MM and MC cartridges and is equipped with step-up transformers for MC cartridges an independent left & right two step gain selector. The three-position switchable crossover frequencies for bass and treble tone controls enable the listener to fine tune the signal to the desired tonal character.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Luxman CL-38uC Pre Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Luxman CL-38uC more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Luxman CL-38uC Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Luxman CL-38uC Pre Amplifier Specification:

• Input sensitivity/input impedance: PHONO (MM): 2.0mV/47kΩ
• PHONO (MC high): 0.3mV/100Ω
• PHONO (MC low): 0.08mV/30Ω
• LINE: 190mV/50kΩ
• BAL.LINE: 190mV/20kΩ *2
• Output/output impedance: Rated 1V/300Ω
• Frequency response: PHONO: 20Hz to 20kHz (±0.5dB)
• LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)
• Total harmonic distortion: 0.006% or less (1kHz), 0.06% or less (20Hz to 20kHz)
• S/N ratio (IHF-A): PHONO (MM): 68dB or more
• PHONO (MC high): 63dB or more
• PHONO (MC low): 60dB or more
• LINE/BAL.LINE: 100dB or more
• Tone control: ±8dB, selectable frequency range
• BASS: 150/300/600Hz,
• TREBLE: 1.5k/3k/6kHz
• Low cut: 30Hz(-6dB/oct.)
• Circuit: SRPP
• Vacuum tubes: ECC83S×3, ECC82×5
• Power supply: 230V~(50Hz)/115V~(60Hz)
• Power consumption: 35W
• External dimensions: 440(W) x 169(H) x 307(D) mm
• Net weight: 13.3kg (main unit)
• Accessories: Remote control (RA-19), Power cable
