Monitor Audio Anthra W10 Subwoofer

Monitor Audio Anthra W10 Subwoofer.

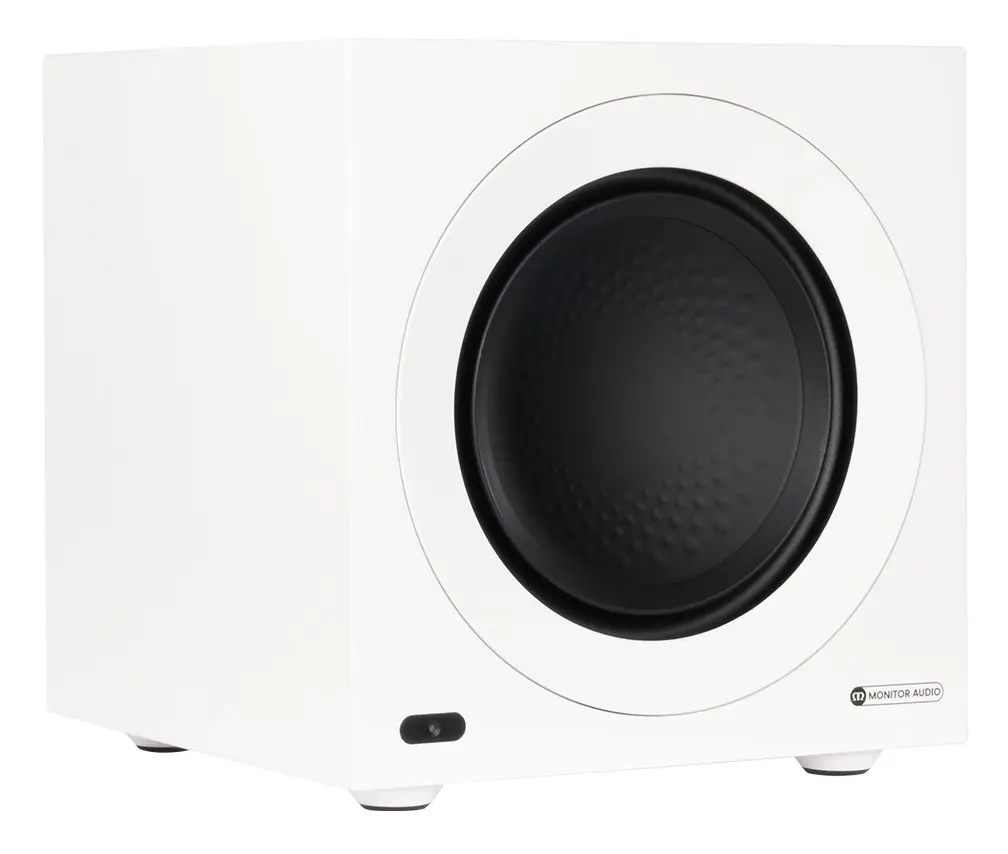

The Monitor Audio Anthra W10 Subwoofer boasts a robust and efficient design in an active, sealed cabinet system format. Its core component is a 10" (254 mm) High Linear-Excursion Triple Suspension Driver, ensuring the delivery of powerful and precise bass output. The subwoofer is equipped with a High-Efficiency Class-D amplifier, guaranteeing optimal performance.

In terms of frequency response, the Anthra W10 Subwoofer offers a lower frequency limit of -6dB at 17Hz, providing deep and immersive bass reproduction. The upper frequency limit, with the LPF (Low Pass Filter) turned off, is -6dB at 400Hz. The driver's excursion capability extends up to 50 mm, enabling it to handle a wide range of audio signals with finesse.

The subwoofer features advanced DSP (Digital Signal Processing) with a 28-bit architecture and a processing power of 50 MIPS, configurable through MaestroUnite. It also incorporates high-quality analog-to-digital conversion, combining a 10Vrms maximum input with low signal-to-noise characteristics for small signals, ensuring pristine audio quality.

With LED UI control for brightness adjustment and on-off functionality, precise phase control ranging from 0 to 360 degrees measured at the LPF crossover, and a versatile low-pass filter that's adjustable from 20Hz to 200Hz with a variable roll-off from -3 to -48dB/octave, the Anthra W10 Subwoofer provides exceptional control and customization options.

This subwoofer is well-equipped for various setups, offering inputs such as stereo unbalanced RCA and mono/LFE balanced XLR, along with corresponding unbuffered outputs. Its universal mains compatibility, ranging from 85VAC to 265VAC, ensures adaptability to different power sources. The external dimensions, excluding the feet, measure 321 x 321 x 321 mm, and it consumes a modest 120W of power. The cabinet construction features braced 18 mm thick MDF and a 36 mm front baffle for structural integrity, while the grille is magnetically attached and covered in cloth, providing both protection and an aesthetic touch. With a weight of 22.2 kg, the Monitor Audio Anthra W10 Subwoofer offers a well-rounded and feature-rich solution for enhancing audio systems.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Monitor Audio Anthra W10 Subwoofer. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Monitor Audio Anthra W10 Subwoofer more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Monitor Audio Anthra W10 Subwoofer, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Monitor Audio Anthra W10 Subwoofer Specification:

• System Format: Active – Sealed Cabinet
• Drive Unit Complement: 1x 10" (254 mm) High Linear-Excursion Triple Suspension Driver
• Amplifier Classification: High-Efficiency Class-D
• Lower Frequency Limit: -6dB @17Hz
• Upper Frequency Limit (LPF Off): -6dB @400Hz
• Driver Excursion (pk-pk): 50 mm
• DSP: 28 Bit 50 MIPS Configurable through MaestroUnite
• Analog Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
• Amplifier Output Power, 240Vac: Instantaneous: 500 W* | Continuous short-term: 425 W**
• Amplifier Output Power, 120Vac: Instantaneous: 450 W | Continuous short-term: 390 W
• LED UI Control: Brightness, On-Off
• Phase Control: 0-360 Degrees measured at LPF Crossover
• Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
• Custom EQ: Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
• Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals

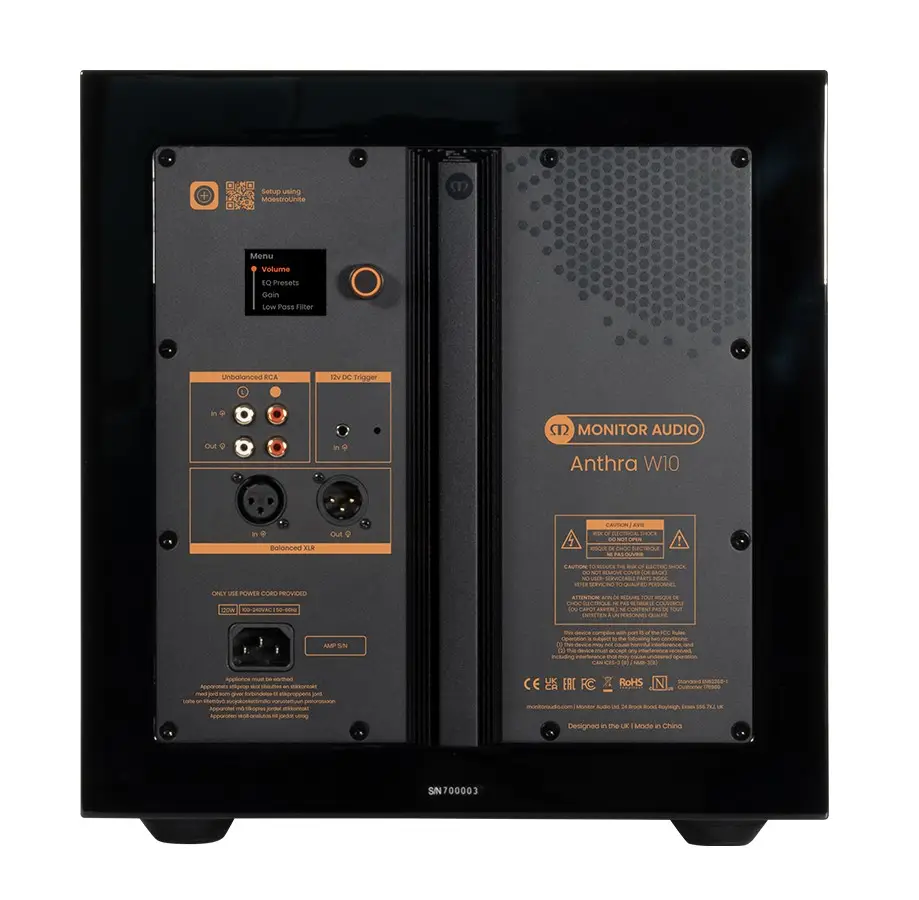

• Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) | Mono/LFE Balanced XLR
• Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs | Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
• Mains Input Voltage: Universal Mains, 85-265VAC
• External Dimensions (without feet) (HxWxD): 321 x 321 x 321 mm
• Power Consumption: 120 W
• Cabinet Construction: Braced 18 mm thick MDF with 36 mm front baffle
• Grille: Cloth covered magnetically attached Grilles
• Weight: 22.2 kg
