Monitor Audio Anthra W12 Subwoofer

Monitor Audio Anthra W12 Subwoofer.

The Monitor Audio Anthra W12 Subwoofer is a powerful addition to any audio system, featuring an active, sealed cabinet design that ensures precise and controlled bass output. Its standout component is the 12" (305 mm) High Linear-Excursion Triple Suspension Driver, capable of delivering deep and resonant bass frequencies. With a High-Efficiency Class-D amplifier, this subwoofer is engineered to optimize performance while remaining energy-efficient.

When it comes to frequency response, the Anthra W12 Subwoofer boasts a lower frequency limit of -6dB at an impressive 16Hz, ensuring that it can reproduce the deepest notes with clarity and authority. With the Low Pass Filter (LPF) turned off, it reaches -6dB at 400Hz for versatility in audio playback. The driver's excursion capability spans 50 mm, allowing it to handle a wide range of audio signals with precision.

This subwoofer offers advanced DSP capabilities, featuring a 28-bit architecture and processing power of 50 MIPS, which can be customized through the intuitive MaestroUnite interface. Analog-to-digital conversion is of the highest quality, combining a 10Vrms maximum input with low signal-to-noise characteristics to deliver clean and detailed audio.

With LED UI control for brightness adjustment and on-off functionality, precise phase control ranging from 0 to 360 degrees measured at the LPF crossover, and a flexible low-pass filter adjustable from 20Hz to 200Hz with variable roll-off settings from -3 to -48dB/octave, the Anthra W12 Subwoofer offers extensive control and customization options to tailor the audio experience to your preferences.

This subwoofer is designed for flexibility in installation, offering inputs such as stereo unbalanced RCA and mono/LFE balanced XLR, along with corresponding unbuffered outputs. It's compatible with universal mains voltage ranging from 85VAC to 265VAC, ensuring adaptability to various power sources. The external dimensions, excluding the feet, measure 374 x 374 x 374 mm, and it has a modest power consumption of 200W. The cabinet construction features braced 25 mm thick MDF with a 36mm front baffle for structural integrity, while the grille is magnetically attached and covered in cloth for a sleek and protective finish. With a weight of 32.4 kg, the Monitor Audio Anthra W12 Subwoofer offers a feature-rich solution for enhancing your audio setup.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Monitor Audio Anthra W12 Subwoofer. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Monitor Audio Anthra W12 Subwoofer more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Monitor Audio Anthra W12 Subwoofer, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Monitor Audio Anthra W12 Subwoofer Specification:

• System Format: Active - Sealed Cabinet
• Drive Unit Complement: 1x 12" (305 mm) High Linear-Excursion Triple Suspension Driver
• Amplifier Classification: High-Efficiency Class-D
• Lower Frequency Limit: -6dB @16Hz
• Upper Frequency Limit (LPF Off): -6dB @400Hz
• Driver Excursion (pk-pk): 50 mm
• DSP: 28 Bit 50 MIPS Configurable through MaestroUnite
• Analog Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
• Amplifier Output Power, 240Vac: Instantaneous: 1700 W* | Continuous short-term: 900 W**
• Amplifier Output Power, 120Vac: Instantaneous: 1325 W | Continuous short-term: 700 W
• LED UI Control: Brightness, On-Off
• Phase Control: 0-360 Degrees measured at LPF Crossover
• Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
• Custom EQ: Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
• Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals

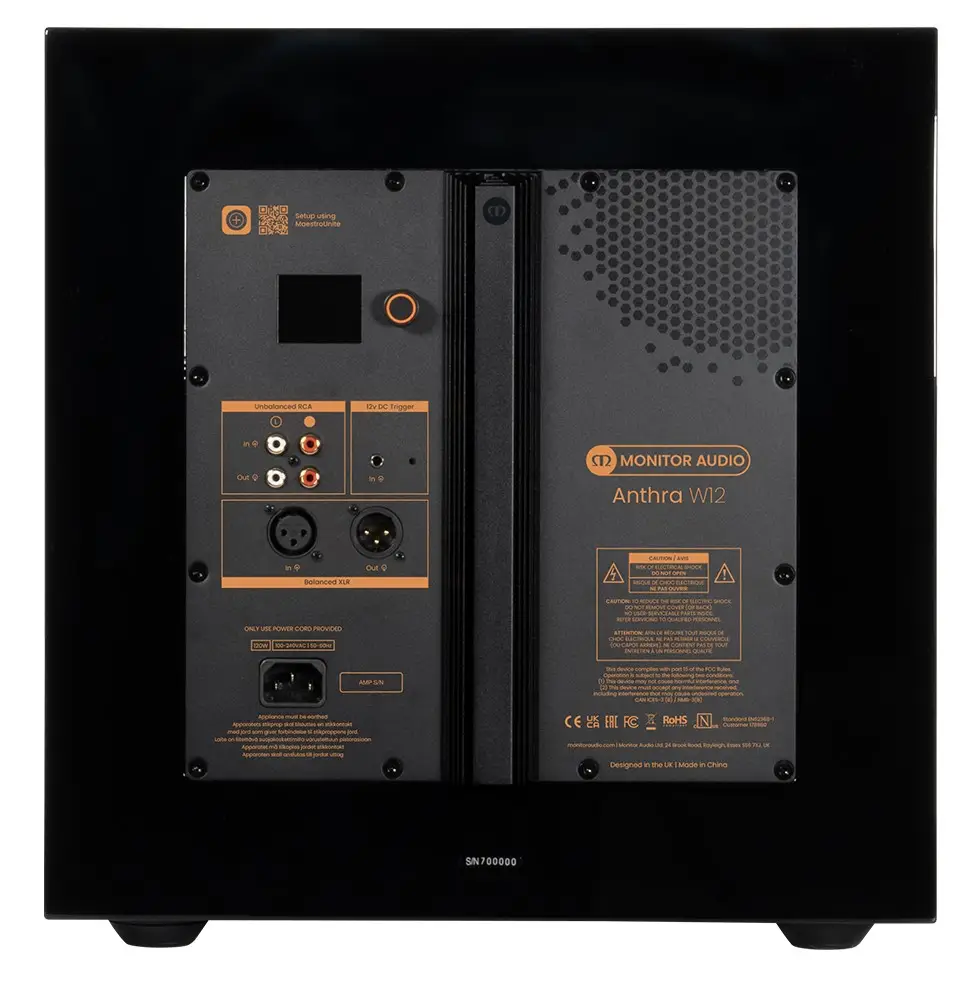

• Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) | Mono/LFE Balanced XLR
• Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs | Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
• Mains Input Voltage: Universal Mains, 85-265VAC
• External Dimensions (without feet) (HxWxD): 374 x 374 x 374 mm
• Power Consumption: 200 W
• Cabinet Construction: Braced 25 mm thick MDF with 36 mm front baffle
• Grille: Cloth covered magnetically attached Grilles
• Weight: 32.4 kg
