Monitor Audio Anthra W15 Subwoofer

Monitor Audio Anthra W15 Subwoofer.

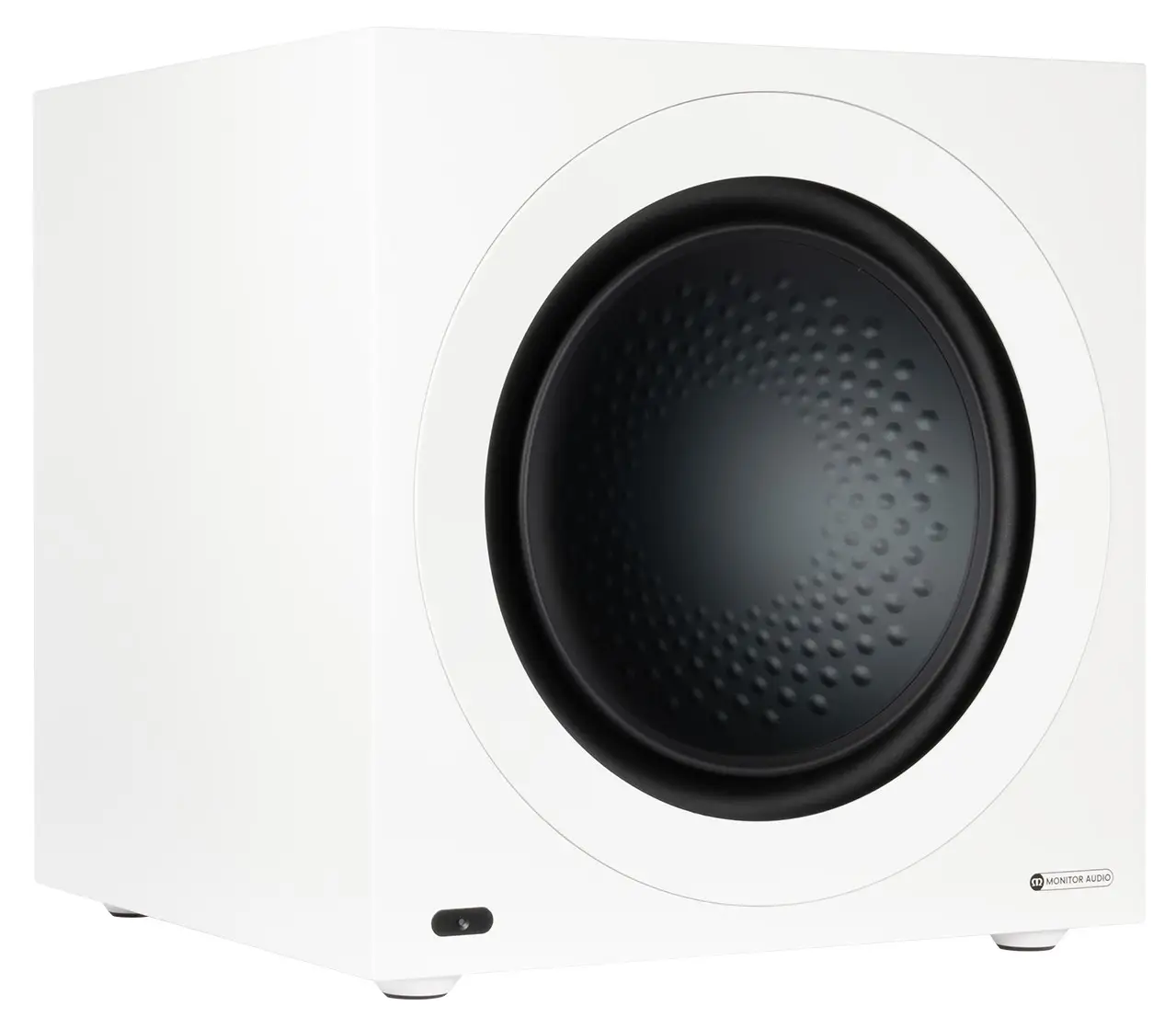

The Monitor Audio Anthra W15 Subwoofer presents a robust and capable addition to your audio setup. Housed within an active, sealed cabinet system, this subwoofer delivers an immersive audio experience. Its focal point is the 15" (381 mm) High Linear-Excursion Triple Suspension Driver, which excels at reproducing deep bass frequencies with precision.

Driving the audio output is a High-Efficiency Class-D amplifier, designed for optimal performance and energy efficiency. This harmonious combination ensures that the Anthra W15 Subwoofer delivers impactful bass that seamlessly integrates into your existing audio environment.

When it comes to frequency response, this subwoofer shines with a lower frequency limit of -6dB at 16Hz, capable of faithfully reproducing the deepest notes in your audio content. With the Low Pass Filter (LPF) disengaged, it achieves a -6dB response at 400Hz, providing versatility in audio playback. The subwoofer's driver has an impressive excursion capability of 50 mm, enabling it to handle a wide range of audio signals with precision.

Advanced features include a 28-bit DSP (Digital Signal Processing) with 50 MIPS processing power, configurable through the intuitive MaestroUnite interface. The Anthra W15 Subwoofer also boasts high-quality analog-to-digital conversion, offering an autoranging input that combines a 10Vrms maximum input with low signal-to-noise characteristics for small signals, ensuring pristine audio quality.

With LED UI control for brightness adjustment and power on-off functions, precise phase control ranging from 0 to 360 degrees measured at the LPF crossover, and a versatile low-pass filter adjustable from 20Hz to 200Hz with variable roll-off settings from -3 to -48dB/octave, the Anthra W15 Subwoofer provides extensive control and customization options to cater to your audio preferences.

In terms of connectivity, it offers stereo unbalanced RCA inputs (or mono/LFE using the designated connector marked LFE) and mono/LFE Balanced XLR inputs, with corresponding unbuffered outputs, making it compatible with various audio sources. The Anthra W15 Subwoofer is designed to accommodate universal mains voltage, ranging from 85VAC to 265VAC, ensuring adaptability to different power sources.

Externally, its dimensions (without feet) measure 439 x 439 x 439 mm, and it consumes 550W of power during operation. The cabinet is constructed with a braced 25 mm thick MDF enclosure and a 36 mm thick front baffle, providing structural integrity. The cloth-covered grille is magnetically attached, offering both protection and an elegant appearance. With a weight of 40.3 kg, the Monitor Audio Anthra W15 Subwoofer is a comprehensive solution for enhancing your audio setup.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Monitor Audio Anthra W15 Subwoofer. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Monitor Audio Anthra W15 Subwoofer more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Monitor Audio Anthra W15 Subwoofer, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Monitor Audio Anthra W15 Subwoofer Specification:

• System Format: Active - Sealed Cabinet
• Drive Unit Complement: 1x 15" (381 mm) High Linear-Excursion Triple Suspension Driver
• Amplifier Classification: High-Efficiency Class-D
• Lower Frequency Limit: -6dB @16Hz
• Upper Frequency Limit (LPF Off): -6dB @400Hz
• Driver Excursion (pk-pk): 50 mm
• DSP: 28 Bit 50 MIPS Configurable through MaestroUnite
• Analog Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
• Amplifier Output Power, 240Vac: Instantaneous: 2500 W* | Continuous short-term: 1400 W**
• Amplifier Output Power, 120Vac: Instantaneous: 2500 W | Continuous short-term: 1400 W
• LED UI Control: Brightness, On-Off
• Phase Control: 0-360 Degrees measured at LPF Crossover
• Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
• Custom EQ: Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
• Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals

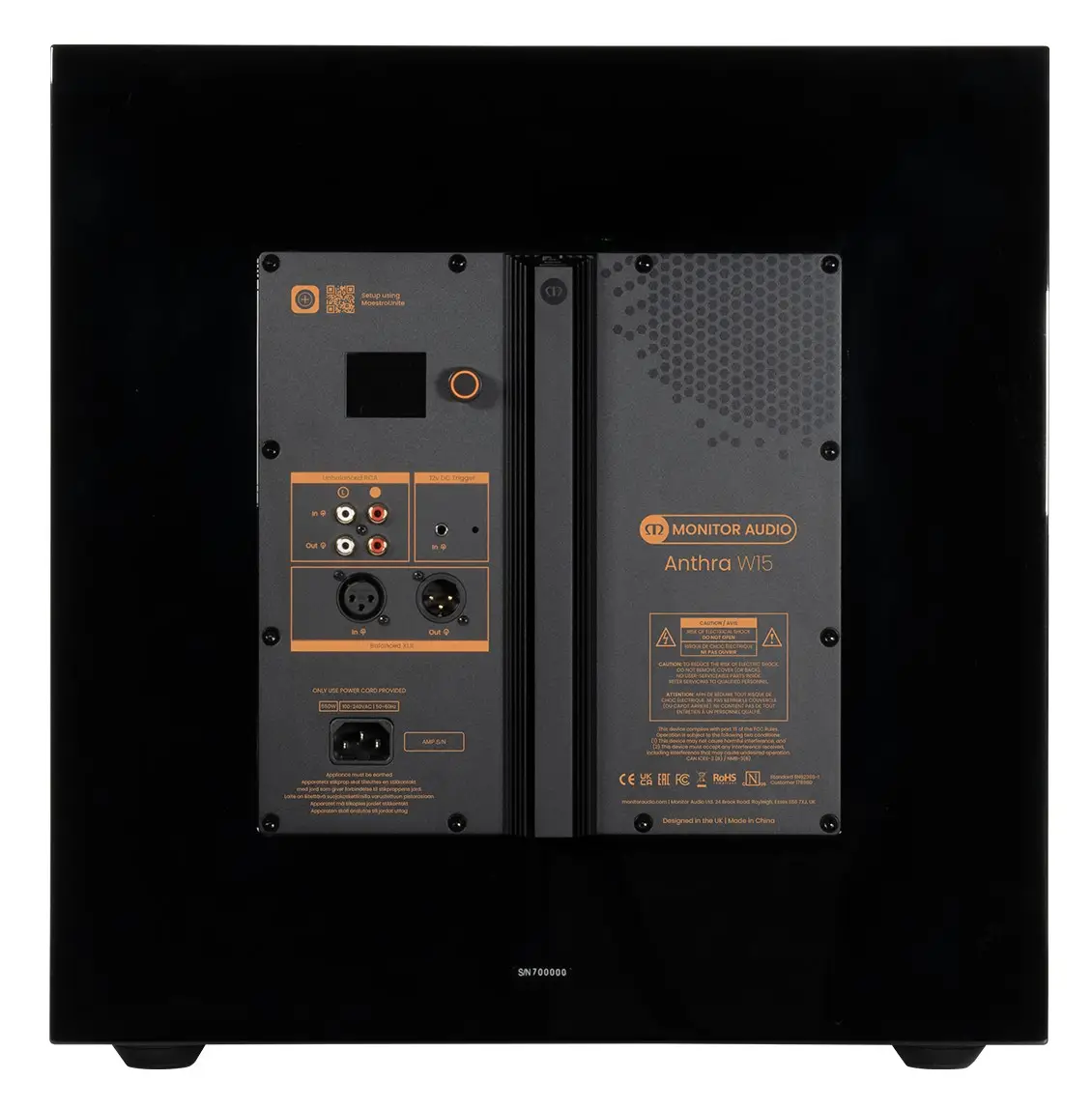

• Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) | Mono/LFE Balanced XLR
• Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs | Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
• Mains Input Voltage: Universal Mains, 85-265VAC
• External Dimensions (without feet) (HxWxD): 439 x 439 x 439 mm
• Power Consumption: 550 W
• Cabinet Construction: Braced 25 mm thick MDF with 36 mm front baffle
• Grille: Cloth covered magnetically attached Grilles
• Weight: 40.3 kg
