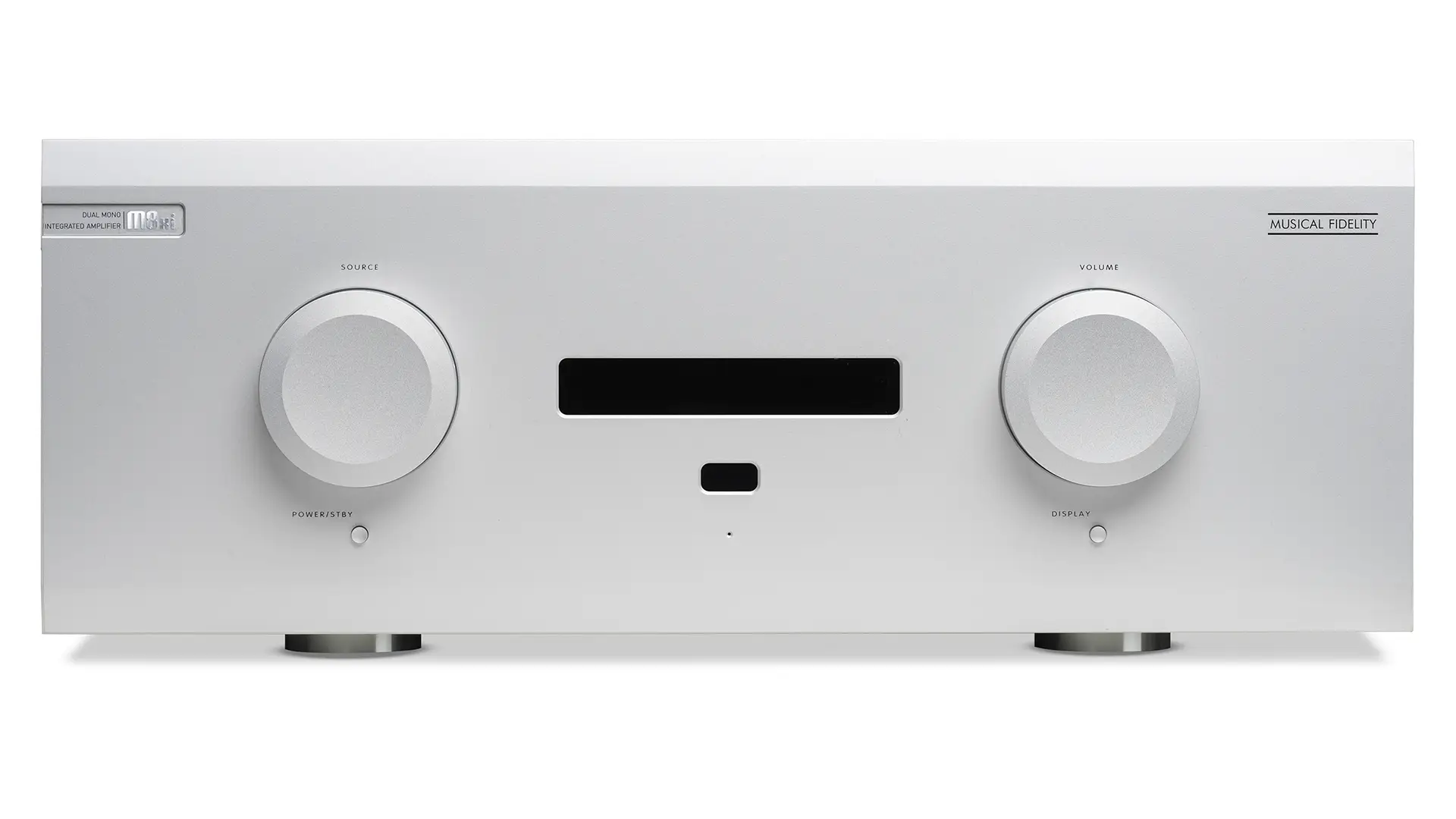

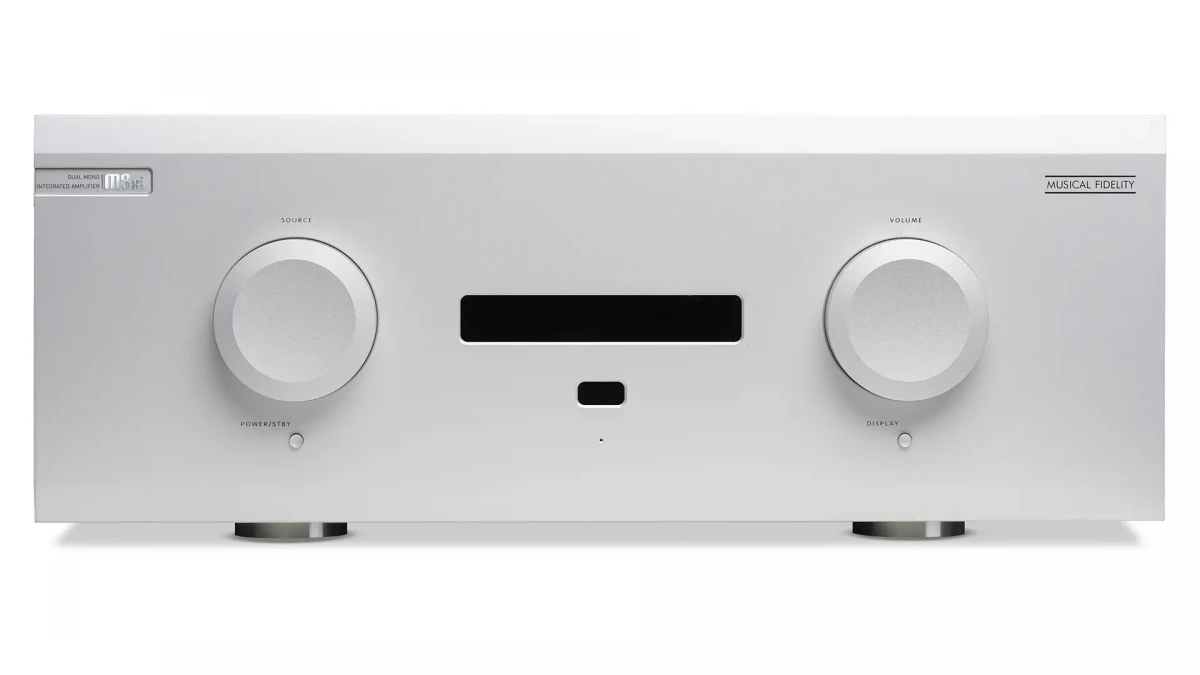

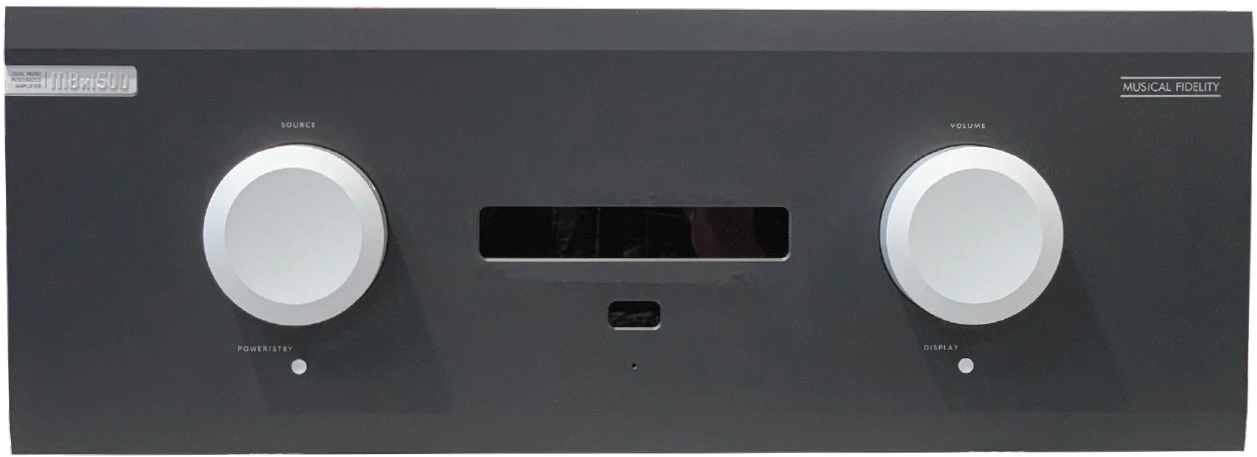

Musical Fidelity M8xi Amplifier

Musical Fidelity M8xi Amplifier

The Musical Fidelity M8xi Amplifier is available for demonstration in our Hull store.

The M8xi is a separate preamp with two monobloc power amps sharing a common chassis. Each has its own heat sink and separate transformer. Genuinely a dual mono design.

The preamp has its own separate power supply and is mounted close to the input sockets. Consequently, PCB tracks are very short. This elegant idea ensures that both channels signals are ultra low impedance from the instant they get into the amplifier. This is a significant detail. Each channel has twelve big bipolar transistors - 200 amps peak to peak is easily available.

The metalwork is high quality. The front panel is a custom made fine line extrusion of milspec aluminium. The custom made heat sinks have outstanding dissipation characteristic and finish. The M8xi construction has the feeling of solidity and quality.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Musical Fidelity M8xi Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle free way of making the Musical Fidelity M8xi more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Musical Fidelity M8xi Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you

Musical Fidelity M8xi Amplifier Specification:

• Amplifier:
• Power: 550 Watts per channel into 8 Ohms (27dBW)
• Maximum output voltage: 67 Volts RMS, 20Hz to 20 kHz; onset of clipping (190 Volts peak-to-peak)
• Maximum peak output current: 105 Amps
• Damping factor: 150
• Output devices: 3+3 pairs (bridged arrangement) per channel

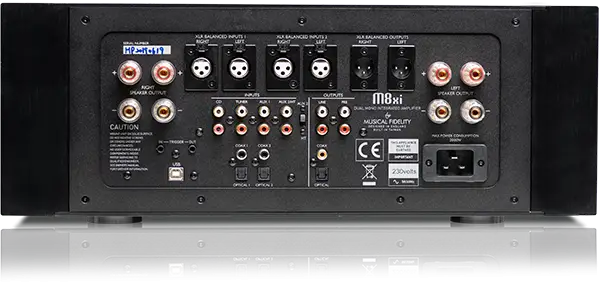

• Inputs (analogue)
• 4 pairs line level RCA connectors
• 2 pairs line level XLR (balanced) connectors
• THD+N: <0.004% typical, 20Hz to 20 kHz (XLR)
• Signal/noise ratio: > 86dB ‚A‘-weighted (XLR)
• Input impedance: 25KΩ (RCA), 50KΩ (XLR)
• Frequency response: +0, –1dB, 10Hz to 100 kHz
• Inputs (digital)
• 2x Coax
• S/PDIF up to 24 bit 192kHz
• 2x Optical
• S/PDIF up to 24 bit 96kHz
• 1x USB B
• Asynchronous USB up to 24 bit 192kHz
• Outputs (analogue)
• 1 pair line level RCA fixed
• 1 pair pre-out RCA variable
• 1 pair line level XLR variable
• Outputs (digital)
• 1x Coax
• S/PDIF up to 24 bit 192kHz
• 1x Optical
• S/PDIF up to 24 bit 96kHz
• General
• Dimensions (WxHxD): 440 x 162 x 400mm
• Max. Consumption: 2000Watts
