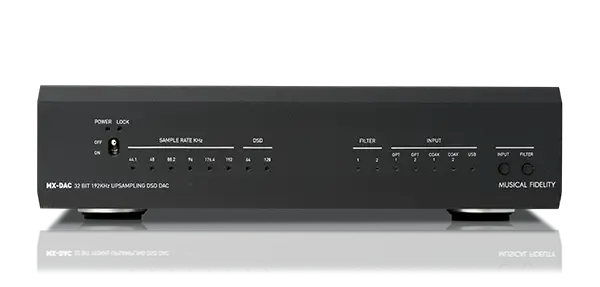

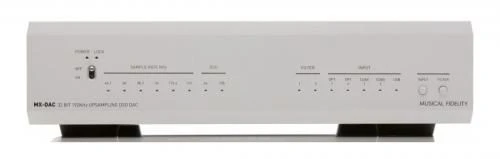

Musical Fidelity MX DAC

Musical Fidelity MX DAC

The Musical Fidelity MX DAC is available for demonstration in our Hull store.

The MX-DAC is a super high performance DSD (64k and 128k) DAC with multiple standard inputs as well. Being a Musical Fidelity DAC it has superlative performance; very low noise, very low distortion, outstanding linearity, ruler flat frequency response and utter neutrality. The MX-DAC’s big future is that all PCM inputs are handled and converted in the DSD domain.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Musical Fidelity MX DAC. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Musical Fidelity MX DAC more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Musical Fidelity MX DAC, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Musical Fidelity MX DAC Specification:

• Sample rate converter: SRC4392 up-sampling data to 192kHz
• Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type
• Output Voltage: 2 Volts RMS single-ended (RCA)
• Output Voltage: 4 Volts RMS balanced (XLR)
• PCM THD: <0.002%
• PCM THD(+ noise): <0.003%
• DSD THD: <0.003%
• DSD THD(+ noise): <0.006%
• PCM Frequency Response: –3dB, 2Hz to 90kHz
• PCM Frequency Response: –3dB, 2Hz to 40kHz
• Channel Separation: -110dB
• Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
• Optical Inputs: S/PDIF up to 24 bit / 192kHz
• USB Input: USB Audio Class 2 requires USB 2.0 or higher
• USB Data Transfer: Asynchronous with DSD DOP 64/128 support

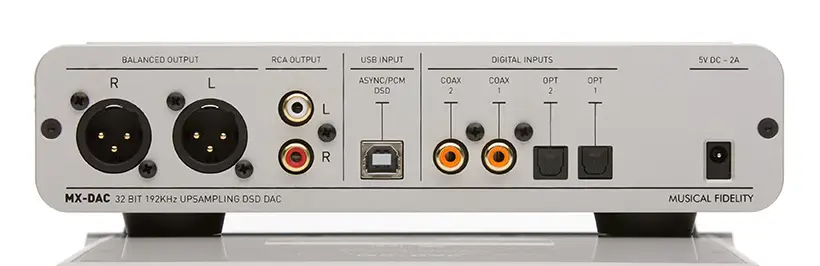

• 2x RCA coaxial connector SPDIF
• 2x TOSLINK optical connector
• 1x USB type 'B' connector
• 1x line level RCA (single-ended)
• 1x XLR Male sockets (balanced) to EIA RS-297-A
• Dimensions - WxHxD (mm): 220 x 53 x 215
• Weight (unpacked / packed): 1.9Kg / 2.4Kg
• Power Consumption: <0.25 Watts standby, <1 Watt max.
