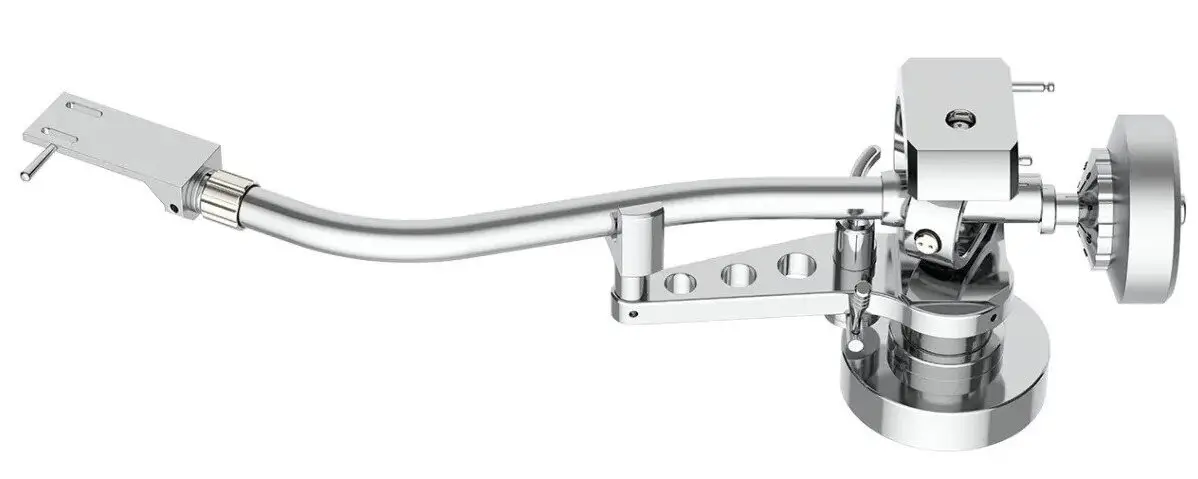

Project EVO AS S Shaped Tonearm

Project EVO AS S Shaped Tonearm

The Project Evo AS S-Shaped Tonearm features a range of functional design elements. The tonearm incorporates flexible high-purity copper inner wiring for efficient signal transmission. It employs an aluminum bearing block, contributing to the overall stability and precision of the tonearm assembly. Furthermore, the ultra-low friction 4-pin point cardanic tonearm bearing ensures smooth and accurate movement.

Designed for both rigidity and weight savings, the tonearm tube is constructed from stiff and lightweight carbon material. To prevent resonances, a TPE damped counterweight is integrated into the design. The tonearm offers accurate azimuth and VTA adjustments for fine-tuning the cartridge setup. Additionally, the open design of the outside ring minimizes bell-mode resonances, enhancing the overall performance.

Convenience and usability are not overlooked, with a silicone-damped armlift that can be adjusted to suit various arm heights. The tonearm also features a gold-plated 5-pin DIN output socket for secure connections. Available in 9, 10, and 12-inch versions, the Project Evo AS S-Shaped Tonearm is made in Europe, adhering to high manufacturing standards. The tonearm's technical features and meticulous craftsmanship make it a reliable choice for audiophiles seeking a quality tonearm.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Project EVO AS S Shaped Tonearm. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Project EVO AS Tonearm more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Project EVO AS S Shaped Tonearm, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Project Evo AS S Shaped Tonearm Specifications:

• Effective tonearm length: 304,8 mm (12"), 254 mm (10"), 230 mm (9")
• Mounting distance: 291,6 mm (12"), 238 mm (10"), 212 mm (9")
• Offset angle: 18° (12"), 21,4° (10"), 24° (9")
• Overhang: 13,2 mm (12"), 16 mm (10"), 18 mm (9")
• Pitch of mounting grooves in headshell: 12,7 mm (12"), 12,7 mm (10"), 12,7 mm (9")
• Effective tonearm mass with / without headshell: 28,1 / 14,5 g (12"), 25 / 11,7 g (10"), 24,2 / 10,6 g (9")
• Cartridge weight: 7-22 g (12"), 6,5-18 g (10"), 6,5-16 g (9")
• The range of the tracking force: 0 - 3 g (12"), 0 - 3 g (10"), 0 - 3 g (9")
• The minimal null point: 125 mm (12"), 126,8 mm (10"), 130,6 mm (9")
• The maximal null point: 251,7 mm (12"), 248,2 mm (10"), 243,7 mm (9")
• Tonearm weight (without flange): 311g (12"), 305g (10"), 303g (9")
