Project MaiA DS3 Amplifier

Project MaiA DS3 Amplifier

The MaiA DS3 (My audio integrated Amplifier) is a reworked all-in-one compact amplifier solution. It combines both analogue and digital inputs to suit almost any source that you can throw its way. With 140 watts per channel at 4 ohms the MaiA DS3 makes it a breeze to power your favourite speakers.

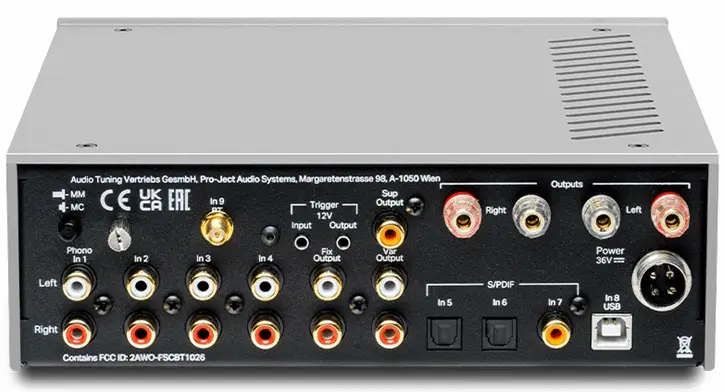

The MaiA DS3 offers nine inputs. Ready for digital or analogue sources, wired or wireless – you’re covered. The phono section can handle MM, MI, or high output MC cartridges. Hook up your tuner or any other analogue device to one of the three line-level RCA inputs. The DAC section has a coax and two optical connections, as well as a USB input.

The variable RCA outputs also allow you to include a subwoofer or another power amplifier in your setup. Use the fixed output to distribute the audio signal to another device unaffected by the volume control to feed an audio recorder, for example.

The high definition aptX HD with its new Bluetooth 5.0 chip will allow you convenient high resolution streaming from your smartphone.

The MaiA DS3 comes in two colours, silver and black. Furthermore, the amplifier comes with a remote control, allowing you to comfortably change the volume with the motor driven potentiometer and switch your input with ease.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Project MaiA DS3 Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Project MaiA DS3 Amplifier more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Project MaiA DS3 Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Project MaiA DS3 Amplifier Specification:

• Amplifier Type: Integrated Amplifier
• Amplifier Class: D
• Power Output (4Ω): 2 x 140 W
• Power Output (8Ω): 2 x 80 W
• Amplifier Frequency Response (20 - 20,000Hz): < ?0.3 db
• Channel Separation: -73dB @ 10kHz
• THD: < 0.01 %
• Signal To Noise Ratio: 97 dB
• Phono Input: MM and MC Input
• Phono Stage Impedance (MM): 47 kΩ
• Phono Stage Impedance (MC): 100 Ω
• Phono Input Gain (MM): 40 dB
• Phono Stage Gain (MC): 60 dB
• RCA Input(s): 3
• Bluetooth Version: BT 5.0
• Bluetooth Codecs supported: aptX and aptX HD
• Optical Input(s): 2 (24-bit, 192kHz)
• Coaxial Input(s): 1 (24-bit, 192kHz)
• USB Digital Input: 1 x USB 2.0
• DAC Chip: TI PCM1795DB
• File Limit Support (PCM): 24-bit, 192kHz
• File Limit Support (DSD): DSD256
• Headphone Output: 6.3mm Jack
• Headphone Amp Output Power: 2 x 430mW at 32ohm (1%THD) 20Hz - 50kHz
• Headphone Amp Frequency Response: -0.1dB at 32 ohms
• Fixed Analogue Output(s): 1 x RCA Pair
• Variable Analogue Output(s): 1 x RCA Pair
• Subwoofer Output(s): 1
• Trigger Connection: Y
• Enclosure Material: Aluminium
• External Power Supply Rating: 36V-5.5A DC
• Dimensions (W x H x D): 206 x 71 x 252 mm
• Weight: 1.85 kg
