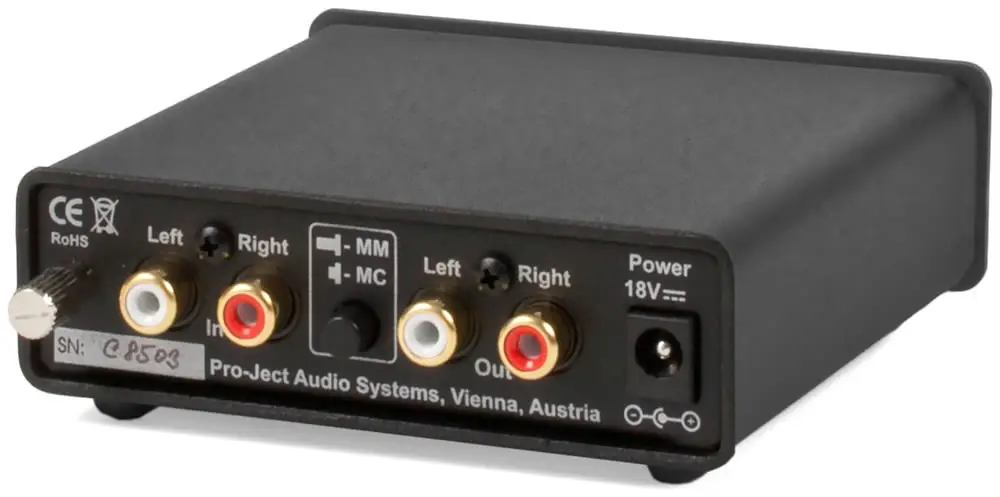

Project Phono Box MM/MC Pre-amplifier

Project Phono Box MM/MC Pre-amplifier

The Project Phono Box MM/MC Pre-amplifier is available for demonstration in our Hull store

The Project Phono Box MM/MC Pre Amplifier enables a turntable to be used where an amplifier lacks a dedicated turntable input. Suitable for any moving magnet or high output moving coil cartridge, Will also improve an existing or poor quality phono stage, includes RIAA equalisation.

Project Phono Box MM/MC Pre-amplifier Specification:

• Special low-noise ICs used
• Optimal channel separation through dual-mono circuitry
• Gold plated RCA connection sockets
• Outboard power supply included
• Input impedance, MM 47kohms/120pF
• Input impedance, MC 100ohms/120pF
• Gain, MM 40dB
• Output voltage typically 300mV/1kHz at 3mV/1kHz (MM input)
• Gain, MC 60dB
• Output voltage typically 300mV/1kHz at 0,3mV/1kHz (MC input)
• Max. output 9,5V (1kHz)
• Noise floor, MM 86dB (94dB - A weighted)
• Noise floor, MC 68dB (75dB - A weighted)
• THD, MM 0,01%
• THD, MC 0,05%
• RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,5dB
• Outboard power supply 16V/200mA (for 220-230v)
• Power consumption 16V/30mA AC
• W x H x D 103 x 38 x 115 mm
• Weight 570g without power supply
