Quad 33 Pre Amplifier

Quad 33 Pre Amplifier

The Quad 33 Pre Amplifier is available for demonstration in our Hull store by request.

The new QUAD 33 is supported by digital microprocessor control but is otherwise faithful to a classic analogue design. The 33 feeds the loudspeakers via the power amplifier using dedicated stereo pre-outputs, with an RCA line-level and balanced XLR pre-out option. For additional versatility and functionality, there’s also an AUX output.

Now equipped with fully balanced XLR inputs and outputs, the 33 is set apart from other preamplifiers and even its forefather model. The brand new phono stage is Moving Magnet and Moving Coil compatible with the ability to simply switch between the two options – no mods or board upgrades necessary. With a gain of 46dB for the MM and 63.5dB for the MC, the input stage uses ultra-low noise audio op-amps. This ultra-low noise performance is combined with high slew rates and very low distortion specifications. The RIAA processing circuit has its own dual Bipolar/JFET Audio Operational Amplifier. The JFET portion of the input stage enables high slew rates to keep distortion low, even when large output swings are required.

Controls

The controls are comprehensive but simple. Again, this echoes the original design concept. Logically grouped to facilitate selection and control of the programme, a backlit LCD screen relays settings, adjustments and values. The same backlighting principle is applied to each of the push buttons, further enhancing the intuitive design with a visual indication of input selection and mode. Illumination settings for buttons and the LCD screen allow for brightness adjustment, contrast adjustment, and a simple on/off setting to suit the user’s preference.

The master volume control is a fully analogue, precision motorised ALPS potentiometer offering long-life and low-noise performance. The volume control is not only tactile and precise; its motorised operation will automatically rotate when adjustments are made via the remote control. A further row of three endless rotary encoders offer intuitive and immediate control over the QUAD-specific fine-tuning settings.

The original QUAD 33, as with many previous and subsequent QUAD preamplifier components, offered filters considered essential for ‘modern good quality speakers’ (as was stated at that time). Such controls are no longer required; therefore, in applying modern-day logic and suitability to today's technology, the new QUAD 33 presents bass adjustment, tilt control and balance control to allow tuning to a fine degree without intruding unnecessarily into the harmonic range essential for realistic reproduction.

Performance

No one knows more about the QUAD 33 than the immensely experienced QUAD service department – still based at QUAD HQ in Huntingdon, Cambridgeshire, England. Upon initiating this project of passion, it was determined that the new 33 and 303 combination will only see the light of day if the performance stands true and improves on the original. in over to 50 years since the release of the original 33 and 303, innovations and developments have been exponential, but only some have been employed and each with good reason. Each stage of the development and every innovation was subject to thorough testing and complete agreement with the QUAD technical design AND service team.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Quad 33 Pre Amplifier. If you have any hifi that you wish to use as part payment against the Quad 33 Pre Amplifier then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk  and we will give you a price to change. This is a fantastic and hassle free way of making the Quad 33 Pre Amplifier more affordable.

Finance Available - No Deposit Required

Fanthorpes hifi can also offer buy now pay later on the Quad 33 Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms on the Quad 33 Pre Amplifier email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you

Quad 33 Pre Amplifier Specification:

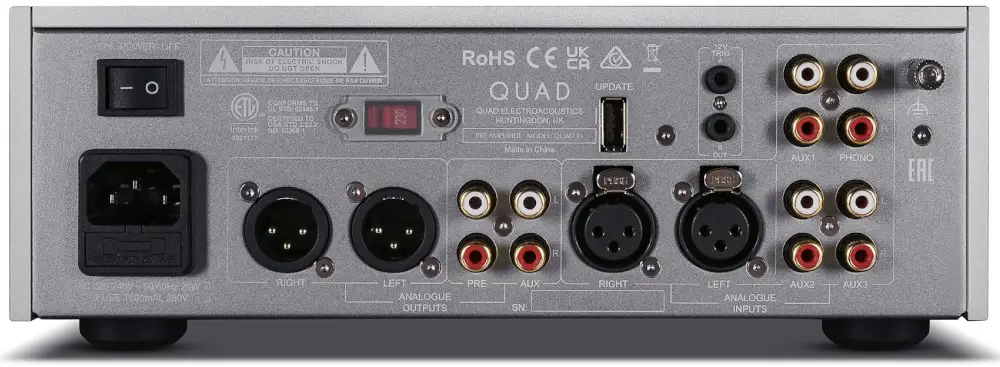

• Inputs: 3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable)
• Outputs: 1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out
• Pre Amplifier Section
• Gain: 0dB (Line / XLR), +46dB (Phono MM), +63.5dB (Phono MC)
• Input Sensitivity (Vout=695mV): 695mV (Line / XLR), 3.2mV (Phono MM), 460uV (Phono MC)
• Input Impedance: 10k (Line / XLR), 47k/100pF (Phono MM), 100R/1.7nF (Phono MC)
• Total Harmonic Distortion (THD): <0.0005% (1kHz, Line/XLR), <0.002% (1kHz, Phono MM / MC)
• Frequency Response: 20Hz - 20kHz (+/-0.2dB)
• Signal-to-Noise ratio (S/N): > 108dB (A-weighted, Line/XLR), > 82dB (A-weighted, Phono MM), > 74dB (A-weighted, Phono MC)
• Output Impedance: 120 ohms
• Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
• Output Impedance: 2.35 ohms
• Load Impedance: 20 - 600 ohms
• Standby Power Consumption: <0.5W
• Net weight: 4kg
• Gross weight: 4.96kg
• Dimensions (mm) (W x H x D): 258 x 94 x 165
• Carton Size (mm) (W x H x D): 330 x 192 x 257
• Finish: Classic QUAD Grey
• Power requirements (depending on region): 220 - 240V - 50 / 60Hz, 100 - 120V - 50 / 60Hz
• Standard accessories: Power Cord, Remote Control, User Manual.
