The Quad Artera Pre Amplifier is available for demonstration in our Hull store by request.

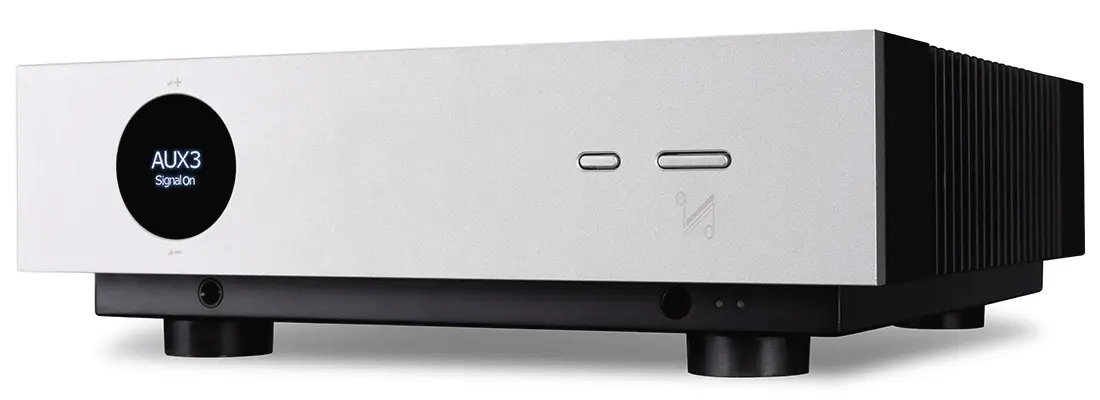

The Artera Pre is the dedicated preamplifier for the Quad Artera series, an all-analogue construction featuring an MM/MC phono stage, three additional RCA inputs and an XLR stereo input. With short signal paths, the analogue signal remains pure throughout with Class A amplification output stage to the power amp. The preamplifier creates a transparent sound with close fidelity to the original source.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Quad Artera Pre Amplifier. If you have any hifi that you wish to use as part payment against the Quad Artera Pre Amplifier then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk  and we will give you a price to change. This is a fantastic and hassle free way of making the Quad Artera Pre Amplifier more affordable.

Finance Available - No Deposit Required

Fanthorpes hifi can also offer buy now pay later on the Quad Artera Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms on the Quad Artera Pre Amplifier email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you

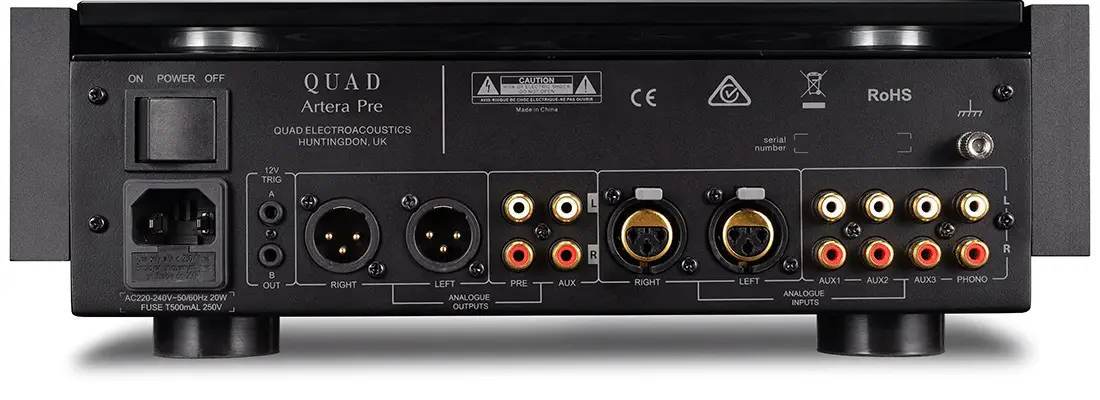

Quad Artera Pre Amplifier Specification:

• 3 x RCA (AUX1, 2 & 3)
• XLR
• Phono MM/MC

Analogue Outputs

• 1 x RCA (PRE OUT)
• 1 x RCA (AUX)
• 1 x XLR
• 1 x 6.35mm Headphone Jack

Gain (max.) , Volume = 100

• +8dB (Line/XLR)
• +53.5dB (Phono MM)
• +73.5dB (Phono MC)

Input Sensitivity (Vol = 84, Vout = 0dBu)

• 775mV (Line/XLR)
• 4.1mV (Phono MM)
• 410uV (Phono MC)

Input Impedance

• 10K (Line/XLR)
• 47K//100pF (Phono MM)
• 100R//1.7nF (Phono MC)

Max. Output Level (THD < 0.1%)

• 2.3Vrms (RCA)
• 4.6Vrms (XLR)

Input Headroom (THD < 0.1% , Vol = 50)

• 4.1Vrms (RCA)
• 8.2Vrms (XLR)
• 62mV (Phono MM) / 6.2mV (Phono MC) @ 1kHz

Frequency Response

20Hz-20kHz (± 0.2dB)

Total Harmonic Distortion

<0.002% (20Hz-20kHz)

S/N Ratio (Vout = 0dBu)

• >110dB(A) (Line/XLR)
• >80dB(A) (Phono MM)
• >76dB(A) (Phono MC)

Channel Separation

>100dB (10kHz)

Output Impedance

• 120 Ohms (RCA)
• 100 Ohms (XLR)

Standby Consumption

• <0.5W

AC Mains Supply Requirement (Factory set)

• 230V ~ 50-60Hz
• 115V ~ 50-60Hz
• 100V ~ 50-60Hz

Dimensions (W×D×H)

• 320 x 320 x 105mm

Net Weight

• 7.8kg
