Sugden Sapphire DAP-800 Pre Amplifier

Sugden Sapphire DAP-800 Pre Amplifier

The Sugden Sapphire DAP-800 Pre Amplifier is available for demonstration in our Hull store

Sugden have released the Sugden Sapphire DAP-800 Pre Amplifier, a digital Pre Amplifier and DAC. The Sugden Sapphire DAP-800 Pre Amplifier utilieses the Sugden VCV circuit, the CVC circuit has been designed to have a high impedance input section, current gain stage (without attenuation problems) which drives a folded cascode stage into a Class ‘A’ output stage. The folded cascode circuit facilitates a wide bandwidth with maximum dynamics and low capacitive connectivity.

The DAC section of the Sugden Sapphire DAP-800 Pre Amplifier is their as an interface for digital products including inputs for USB, Optical and coaxial S/PDIF signals. The Sugden Sapphire DAP-800 Pre Amplifier's DAC set up has been tested and tuned through hours of auditioning to give you the dynamic, tonal balance, with the voice and emotion that you've come to expect from Sugden.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Sugden Sapphire DAP-800 Pre Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Sugden Sapphire DAP-800 more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Sugden Sapphire DAP-800 Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Sugden Home Demonstration Available

Want to hear what the Sugden DAP-800 will add to your system? Please email us on at shop@fanthorpes.co.uk or call us on 01482 223096 and we will discuss how this can happen. We are known for travelling all over the country to demonstrate and install hifi equipment.

Sugden Sapphire DAP-800 Pre Amplifier Specification:

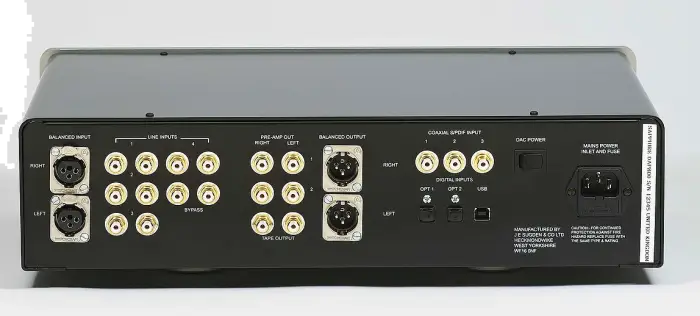

• Analogue inputs – Four line level inputs, one balanced input & bypass.
• Digital inputs – Three S/PDIF coax, two S/PDIF optical & one USB type B Word length up to 24bit 96k.
• Outputs – Two line level outputs, one balanced output, & tape output.
• Volume control – Motorised remote control (analogue) RC5 compatible.
• Mains power switching – Separate for analogue and digital circuits.
• Input sensitivity – 120mV for 1 Volt out.
• Maximum output – 9 Volts.
• Frequency response – 0dB 15Hz – 98kHz. 3dB 8Hz – 125khz.
• Signal to noise – >85dB.
• Distortion – <0.05% @ 1kHz, 1Volt out.
• Weight – 10 kgs.
• Dimensions – 120 x 430 x 340mm (hwd)
• 5 Year Warranty
