Townshend Allegri Reference Passive Pre Amplifier

Townshend Allegri Reference Passive Pre Amplifier

The Townshend Allegri Reference Passive Pre Amplifier is available for demonstration in our Hull store by request.

Townshend Audio Allegri Reference Preamplifier is a microprocessor-controlled passive autotransformer volume control pre amp. It can be connected to many sources via 7 pairs of inputs, has full remote control feature, and superbly detailed LED display perfect for any audio enthusiast.

Passive AVC

This preamplifier uses autotransformer volume control which offers a far superior sonic performance compared to conventional transformers. It offers complete control over volume at all listening levels, from very low levels to very high levels the Allegri Reference delivers refined volume control for an incredibly wide range. It has low leakage inductance ensuring good coupling, transiency and flatter frequency response.

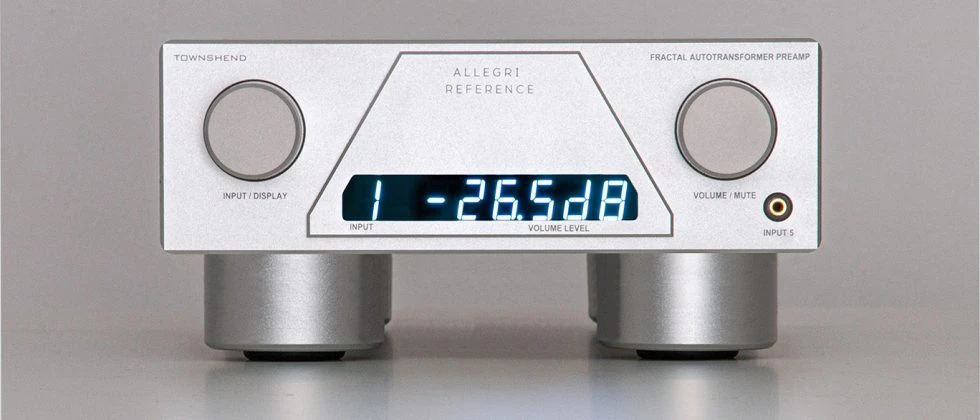

Front Panel Controls

This preamplifier enjoys a range of controls for your convenience. Front panel controls allow you to control inputs 1-5 where you can adjust the volume level on the right hand control whilst the left hand control brings up the volume level display.

Full Remote Control

Allegri Reference comes equipped with a remote control, allowing you to sit back and relax whilst being able to operate the volume, mute or select an RCA input or program a pre-set level with the touch of a button. Simply hold down the volume button for a more rapid increase change or one press changes the volume by one step. You can pre-set each of the 5 inputs to your desired volume or use home cinema bypass which allows the volume to be controlled by the AV receiver alternatively.

LED Display

The Allegri Reference enjoys a super clear, white LED display that looks super sleek on the stylish grey build. The optimised LED display is powered by interference-free DC, making it much more efficient. Alongside this, an ambient light level sensor controls the brightness allowing an easy to read display in both darkness and bright light.

Accurate, Open Sound

Enjoy Townshend Audio's renowned sound quality, with crystal clear highs, an open mid-range and accurate bass. Each transformer is wired using the brand's unique Fractal wire which has been developed through critical listening tests to meet the highest standards. The result is stunningly accurate pre-amplifier that enjoys high levels of accuracy, transparency, resolution and openness.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Townshend Allegri Reference Passive Pre Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Townshend Allegri Reference more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Townshend Allegri Reference Passive Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Townshend Allegri Reference Passive Pre Amplifier Specification:

• Frequency response: 8Hz-80kHz +/- 0.1dB.
• Maximum signal level: 4V RMS 8Hz; 10V RMS 20Hz and up.
• Maximum DC offset: 5mV (For undistorted 8Hz).
• Distortion: Less than 0.01% at 400Hz, 10V (2nd and 3rd harmonic only)
• Impedance: At 0dB, input impedance is 20kohm. At -10dB (normal listening) input impedance is 200kohm , for a power amplifier load, with 20k input impedance

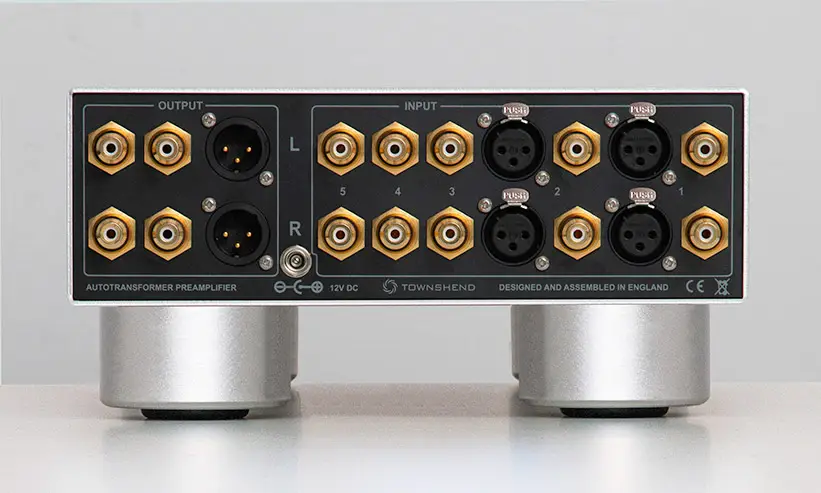

• Inputs: Five pairs of RCA phono sockets (gold plated). Two pairs of XLRs in parallel with inputs 1 and 2. One 3.5mm stereo jack on front panel, in parallel with input 5
• Outputs: Two pairs of RCA phono sockets (gold plated) One pair of XLRs
• Power:External DC supply 12V Linear external.
• Dimensions: Width 234mm (5.3in), Height 100mm (4in), Depth 380mm (15in)
• Weight:9kg (20lb)
• SPECIFICATIONS POWER SUPPLY
• Input: 120V to 240V, 50-60Hz. Country specific.
• Output: Linear 12V 0,5W
