Wharfedale Elysian 4R Speakers

Wharfedale Elysian 4R Speakers

The Wharfedale Elysian 4R Speakers sit at the very top of Wharfedale’s refined Elysian R Series, representing the most advanced expression of the brand’s flagship loudspeaker design philosophy. Developed by Wharfedale’s award-winning engineering team under Peter Comeau, the 4R builds on the success of the original Elysian models with carefully considered improvements to drivers, crossover design, cabinet behaviour, and overall refinement.

Rather than reinventing the platform, Wharfedale has evolved it with precision. The result is a loudspeaker that retains the musical warmth and expansive scale the Elysian series is known for, while delivering greater transparency, control, and resolution for modern high-end listening systems.

Flagship Position in the Elysian R Series

The Wharfedale Elysian 4R Speakers are positioned as the largest and most capable model within the Elysian R range. While the series includes the compact 1R, the more substantial 2R, the floorstanding 3R, and the centre-channel CR, the 4R stands above them all as the definitive stereo reference.

Designed for larger listening environments and high-performance audio systems, the 4R offers significantly greater scale and dynamic authority. It delivers a presentation that feels effortless even at demanding playback levels, while maintaining the tonal balance and refinement expected from a flagship Wharfedale design.

AMT Tweeter Performance and High-Frequency Refinement

At the top end of the Wharfedale Elysian 4R Speakers is an advanced Air Motion Transformer (AMT) tweeter, designed to deliver exceptional speed and precision. Unlike conventional dome tweeters, the AMT uses a pleated diaphragm that moves air more efficiently, allowing for faster transient response and reduced distortion.

In the Elysian R generation, Wharfedale has refined this design further with an ultra-light PET diaphragm, an enlarged motor structure, and a rear acoustic damping chamber. These improvements allow the tweeter to reveal finer levels of detail while maintaining a smooth, non-fatiguing character.

The result is treble reproduction that feels open and airy, with a natural sense of space and extension. High frequencies are rendered with clarity and delicacy, allowing cymbals, strings, and vocal harmonics to emerge with lifelike realism and no sense of harshness or strain.

Midrange Clarity and Vocal Realism

A key strength of the Wharfedale Elysian 4R Speakers lies in their dedicated 150mm midrange driver, which is engineered to reproduce the most sensitive part of the audible spectrum with accuracy and emotional realism.

The driver uses Wharfedale’s woven glass fibre matrix cone material, chosen for its balance of stiffness and controlled damping. This allows vocals and instruments to be reproduced with natural tone and texture, free from coloration or artificial emphasis.

Supporting technologies such as an advanced motor system, aluminium demodulation ring, phase plug, and precision damping materials work together to reduce distortion and improve dispersion. This ensures that voices are projected with striking presence, while acoustic instruments retain their natural body and harmonic complexity.

Bass Extension, Scale and Control

The Wharfedale Elysian 4R Speakers deliver the most powerful and extended bass performance in the Elysian R range. Their large bass drivers are engineered to provide both depth and control, producing low frequencies that are weighty yet articulate.

Bass performance is further enhanced by Wharfedale’s Slot-Loaded Profiled Port system, which carefully controls airflow and reduces turbulence. By venting bass energy through a precisely engineered slot at the base of the cabinet, the system improves low-frequency integration with the room and allows for more consistent performance across different placements.

This design enables the 4R to achieve true low-frequency extension below 30Hz, giving music and film soundtracks a sense of scale and physical impact while maintaining clarity and timing throughout the bass region.

Crossover Engineering and Signal Purity

Inside the Wharfedale Elysian 4R Speakers, the crossover network plays a critical role in ensuring seamless integration between drivers. Wharfedale has implemented a highly refined design using premium-grade components chosen specifically for transparency and low distortion.

Air-core coils, high-silicon iron-core inductors, audiophile-grade polypropylene capacitors, and low-inductance resistors are used throughout the network. In addition, the crossover is split across separate circuit boards to minimise electromagnetic interaction between sections handling different frequency ranges.

High-purity LC-OFC internal wiring further preserves signal integrity, ensuring that the final output remains clean, coherent, and dynamically expressive. The result is a speaker that delivers a unified soundstage with precise imaging and natural tonal balance.

Cabinet Design, Construction and Finishes

The cabinet design of the Wharfedale Elysian 4R Speakers reflects Wharfedale’s focus on both acoustic performance and luxury aesthetics. The enclosure uses a multi-layer construction approach designed to reduce resonance and prevent unwanted coloration from interfering with the sound.

Internal bracing and advanced modelling techniques ensure that cabinet energy is tightly controlled, allowing the drivers to perform without interference. This contributes to the speaker’s clean, uncoloured presentation and stable imaging.

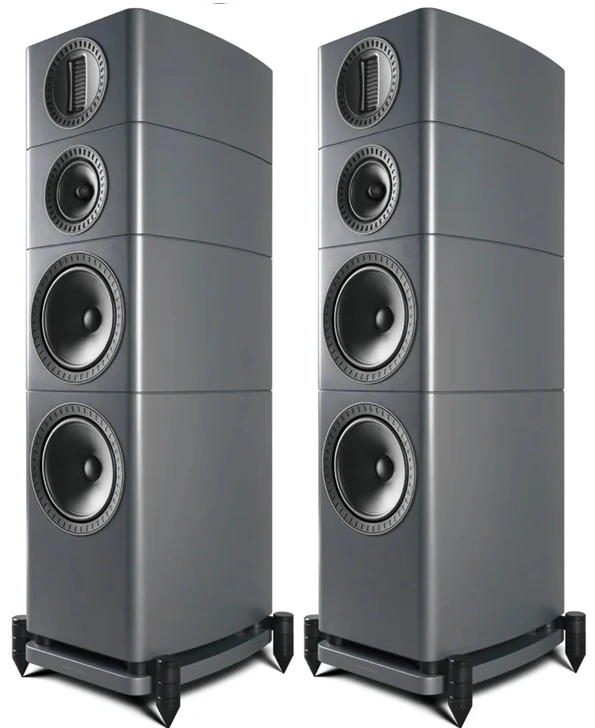

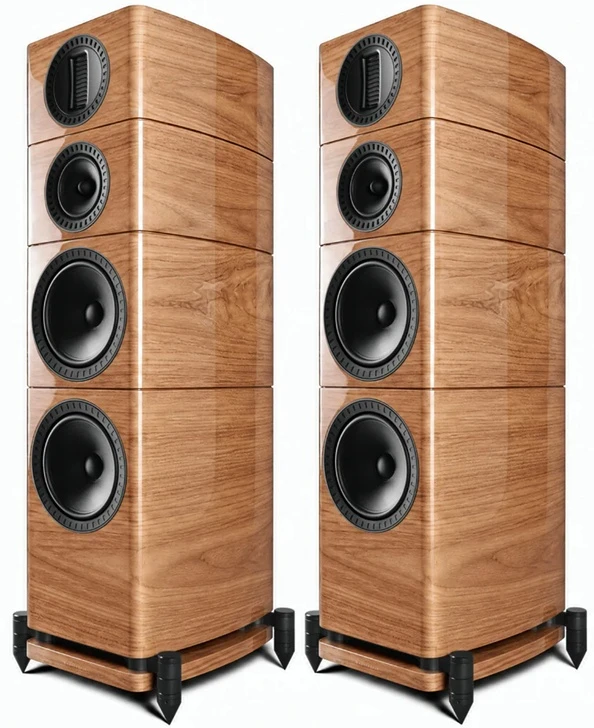

Visually, the 4R is finished to a furniture-grade standard, with options including piano lacquer walnut veneer alongside contemporary matt black and matt grey finishes. Every surface is carefully refined, giving the speaker a premium, understated presence suitable for high-end listening spaces.

Overview

The Wharfedale Elysian 4R Speakers represent the culmination of Wharfedale’s Elysian R engineering approach, combining advanced driver technology, refined crossover design, and high-quality cabinet construction into a single flagship loudspeaker system.

They offer an exceptional balance of scale, detail, and musicality, making them ideal for audiophiles seeking a reference-level floorstanding speaker that remains engaging, natural, and deeply immersive across all genres of music.

Wharfedale Elysian 4R Speakers Specification:

• Drivers
• Treble driver: 27 × 90 mm AMT (Air Motion Transformer)
• Midrange driver: 150 mm glass fibre matrix cone
• Bass driver: 220 mm glass fibre matrix cone ×2
• Performance
• Frequency response (±3 dB): 30 Hz–22 kHz
• Bass extension (-6 dB): 24 Hz
• Sensitivity: 92 dB (2.83 V @ 1 m)
• Minimum impedance: 3.2 Ω
• Nominal impedance: 4 Ω / 8 Ω compatible
• Recommended amplifier power: 15–250 W
• Crossover frequencies: 340 Hz / 3.1 kHz
• Design
• Configuration: 3-way floorstanding loudspeaker
• Enclosure type: Bass reflex / Slot-loaded port
• Model
• ELYSIAN 4R
• Dimensions
• Height × Width × Depth: 1188 × 402 × 432 mm
