Chord M Scaler

Chord M Scaler

The Chord M Scaler is available for demonstration in our Hull store.

Read the Chord Hugo M Scaler Review: Transform Your Chord DAC

Chord M Scaler uses the world’s most advanced filter technology to upscale standard 44.1kHz digital audio up to 705.6kHz (16x CD’s 44.1kHz native resolution), ready to be passed to a suitable DAC; Chord M Scaler extends its upscaling performance to 768kHz (from 96kHz input data) for dual-BNC-input Chord Electronics DACs: DAVE, Qutest and the new Hugo TT 2.

35 years in the making, the Chord M Scaler brings the unrivalled advantages of Rob Watts’ (Chord Electronics’ Digital Design Consultant) ground-breaking FPGA-based WTA (Watts Transient Alignment) filtering technology to digitally connected audio devices, dramatically improving sound quality.

Although optimised for use with selected Chord Electronics DACs (for the maximum 768kHz upscaling/decoding benefit), the Chord Electronics Hugo M Scaler can be used with other DACs with suitable inputs, subject to their decoding capability. Chord M Scaler’s advanced upscaling technology can improve the sound quality of all (digital-source) set-ups, whether headphone or desktop-based or within conventional hi-fi systems.

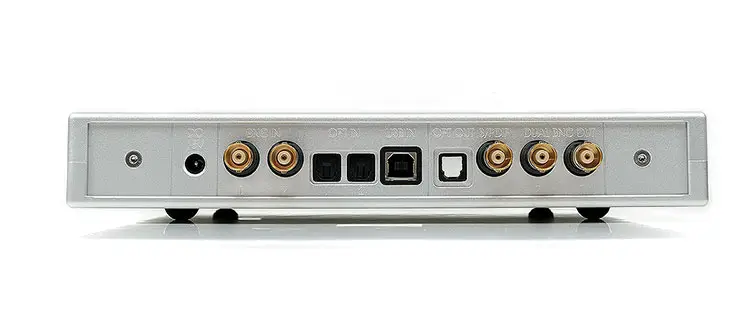

Chord M Scaler features five digital inputs (2x BNC, 2x optical, plus a galvanically isolated USB Type-B) offering wide-ranging digital connectivity; the USB-B input is compatible with DSD and PCM data (up to DSD 256), with DSD upsampled to PCM using proprietary filtering, which has much better attenuation of DSD noise and distortion.

Chord Electronics Hugo M Scaler’s outputs include optical, S/PDIF and galvanically isolated dual BNC, the latter of which enable upscaling to the maximum resolution (768kHz from 96kHz data) for direct connection to the 768kHz-capable dual BNC digital inputs featured on the DAVE DAC/pre/headphone amp, the recently announced Hugo TT 2 DAC/pre/head amp and the Qutest standalone DAC.

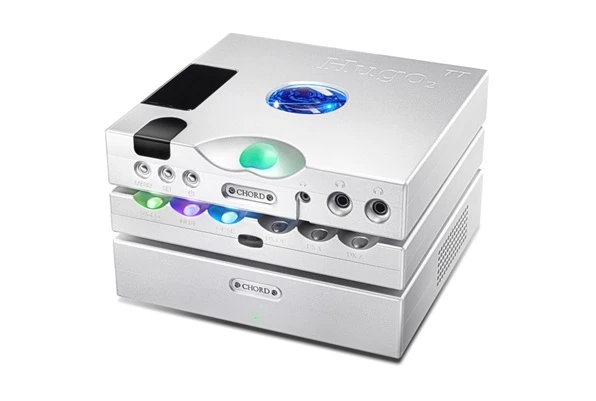

The Hugo M Scaler’s compact form factor aligns with the TT series and has been designed to be stackable with other units in the range, including the TToby stereo power amp and the aforementioned Hugo TT 2, to form a highly advanced yet space-saving system.

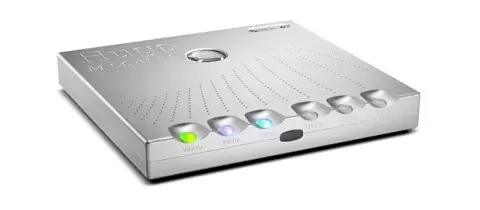

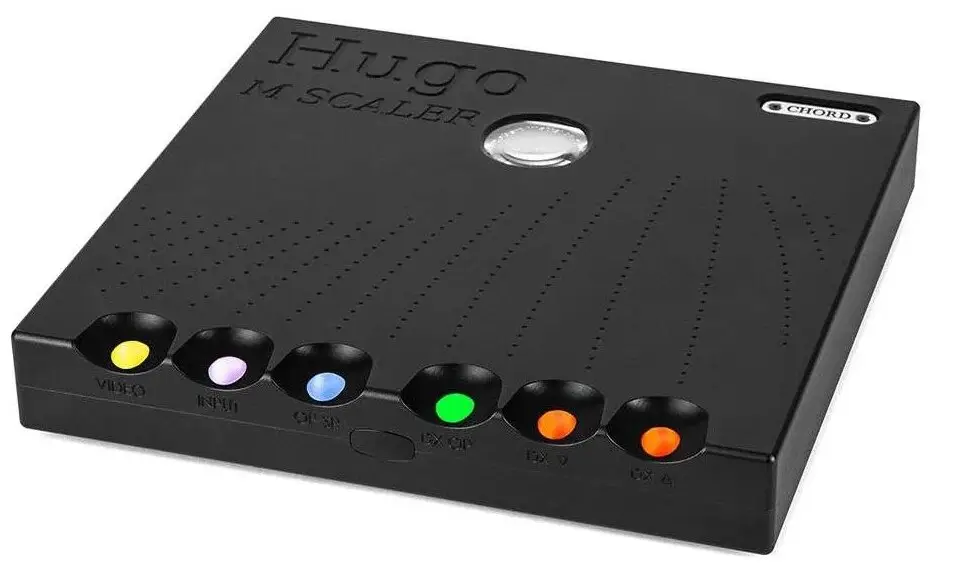

In line with other models in the Hugo and Hugo TT series, the Chord M Scaler features a number of illuminable fascia-mounted spherical controls, governing input selection, output sample rate and video mode for lower latency. As with previous Chord Electronics digital devices, the control spheres display data visually including input source and the incoming sample rate, using a polychromatic scale. The Hugo M Scaler also features front-panel ‘DX’ controls which have been included for use with future products.

The Chord Electronics Hugo M Scaler benefits from an adjustable sample rate output (with pass-thru mode) enabling user-defined control, subject to the technical limitations of the output type: 192kHz optical; 384kHz BNC and 768kHz dual BNC), plus a video mode for lower latency, bringing useful flexibility with a wide range of partnering components. Further extending the Chord M Scaler functionality is auto video and source selection.

Featuring technology previously exclusive to the BLU MKII upscaling digital/CD transport (£7,995), the extraordinary upscaling ability of the Hugo M Scaler brings the benefits of Rob Watts’ proprietary FPGA-based tech to a much wider audience, given its £3,495 price point.

When partnered with either of Chord Electronics’ 768kHz-capable dual-BNC-input DACs, the Hugo M Scaler sets an astonishing technical benchmark for digital audio performance at it price point, redefining sound quality from digital audio.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Chord Electronics M Scaler. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Hugo M Scaler more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Chord Electronics Hugo M Scaler, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Chord Electronics  M Scaler Specification:

• FPGA:Xilinx XC7A200T
• Filter tap length:1,015,808 WTA taps
• Power consumption: Full power – 30 W, Standby – 10 W
• Dimensions:4cm (H) 23.5cm (W) 23.8cm (D)
• Weight:2.55kg
