Exposure XM5 Integrated Amplifier

Exposure XM5 Integrated Amplifier

The Exposure XM5 Integrated Amplifier is available for demonstration in our Hull store by request.

Introducing the Exposure XM5 Integrated Amplifier, carefully designed for optimal performance. With its all aluminium casework and extruded front panel, this Integrated Amplifier guarantees durability and reliability.

Exposure prioritize quality, utilizing high-grade resistors and capacitors in the signal path. To enhance power supply immunity, we have implemented cascode circuitry. Expect exceptional dynamics and performance, thanks to the incorporation of Toshiba bipolar output transistors.

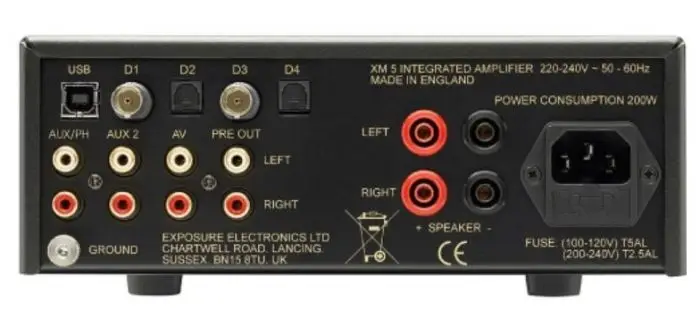

With a power output of 60W per channel into 8 Ohms, the XM5 delivers impressive audio results. It caters to various audio setups, featuring a moving magnet phono input, a fixed level AV input, and a line level input. Additionally, it offers two coax (bnc) and two optical inputs, along with a class 2 USB input with DSD support.

For added convenience, Exposure have included a separate pre-amp output and a user-friendly remote control and a three-year guarantee, ensuring your satisfaction and peace of mind.

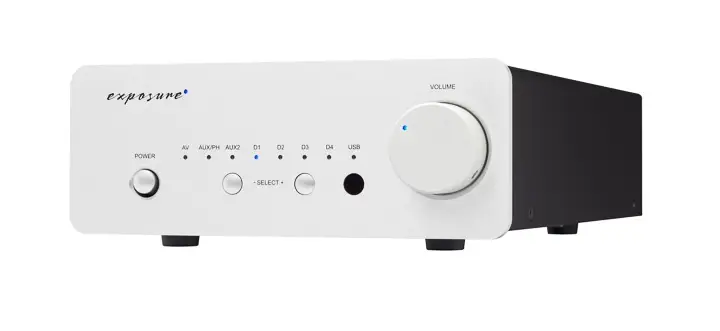

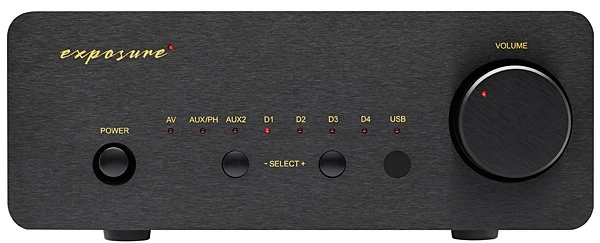

Choose between the sleek black or titanium finish to complement your setup. Elevate your audio experience with the Exposure XM5 Integrated Amplifier.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Exposure XM5 Integrated Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Exposure XM5 more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Exposure XM5 Integrated Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Exposure XM5 Integrated Amplifier Specification:

• Speaker Output Specifications
• Power Output (1KHz) : 60 Watts per channel into 8 ohms
• Total Harmonic Distortion : <0.01% at 1KHz, rated power
• Frequency Response : 20Hz - 20KHz +/- 0.5dB
• Channel Separation : >60dB @ 1KHz AUX 2 input open (shorted > 80dB) >40dB @ 20KHz AUX 2 input open (shorted > 63dB)
• Pre Amplifier Specifications
• Pre Amplifier Output : Gain +12dB
• Frequency Response : 20Hz - 20KHz +/- 0.5dB
• Total Harmonic Distortion : @ 1KHz: & 1V ouput : 0.002%
• Signal to Noise Ratio ref 1KHz & 1V ouput : >100dB, A weighted
• Channel Separation @ 20KHz : >62dB input shorted > 41dB input open AUX 2 input
• Input Specifications
• AV input fixed level : 450mV @ 1KHz > 12K ohms S/N > 100dB
• AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N 70dB
• AUX 2 input Line : 350mV @ 1KHz > 14K ohms S/N > 100dB
• SPDIF inputs BNC Coax & Optical : 32 - 192KHz @ 16-24 bits
• USB input : Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host
• Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
• Power Consumption : 200W both channels driven, 8 ohms load
• Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
• Net Weight (unpacked) : 5kg
• Gross Weight (packed) : 6kg
