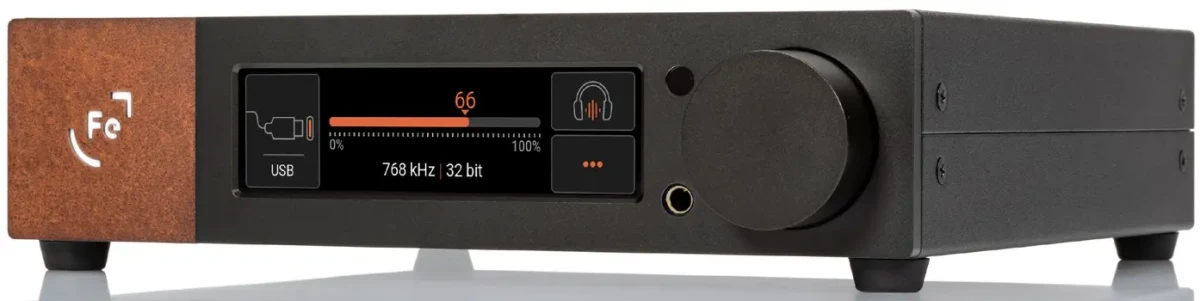

Ferrum Audio Wandla HP Headphone Amplifier

Ferrum Audio Wandla HP Headphone Amplifier

The Ferrum Wandla HP Headphone Amplifier is available for demonstration in our Hull store by request.

Ferrum proudly introduces the newest addition to their WANDLA series: the WANDLA HP. Known for pushing boundaries in hi-fi innovation, Ferrum has previously delivered remarkable products such as HYPSOS, their hybrid power system; OOR, their flagship headphone amplifier; ERCO, their entry-level DAC; and WANDLA, their flagship DAC. A shared feature of these products is their upgradeability with HYPSOS. Positioned comfortably between entry-level and super-flagship tiers, the WANDLA HP caters specifically to headphone enthusiasts looking for premium performance.

Essentially, WANDLA HP combines the exceptional capabilities of WANDLA with an outstanding headphone amplifier. This makes it an ideal choice for those seeking more than ERCO offers but not yet ready for the flagship combination of WANDLA and OOR. Designed with all the high-end features of the original WANDLA, Ferrum’s engineers have equipped the WANDLA HP with a fully balanced, composite IC headphone amplifier. This amplifier delivers performance that comes strikingly close to the renowned OOR. True to Ferrum’s ethos, pairing the WANDLA HP with HYPSOS enables users to unlock its full potential, ensuring a transformative listening experience.

The WANDLA HP is packed with impressive specifications. Its fully balanced design features a composite IC headphone amplifier tailored specifically for WANDLA. The amplifier produces a powerful 3.5 watts at 50 Ω (balanced) and achieves a remarkable dynamic range of 122 dB, ensuring an immersive and detailed soundstage. While it performs excellently as a standalone product, its compatibility with HYPSOS via the proprietary Ferrum Power Link (FPL) connection elevates the system to unparalleled levels of musicality and precision.

Sleek, powerful, and designed for music lovers, the WANDLA HP is a visual and sonic marvel. Whether you're enjoying it right out of the box or pushing it to its limits with HYPSOS, the WANDLA HP promises an exceptional hi-fi experience that will turn heads and satisfy the most demanding audiophiles.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Ferrum Wandla HP Headphone Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Ferrum Wandla HP more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Ferrum Audio Wandla HP Headphone Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Ferrum Audio Wandla HP Headphone Amplifier Specification:

• Headphone Section

  • THD (Balanced):
    • 0.00016% / -116 dB at 10 mW into 50 Ω
    • 0.00020% / -114 dB at 100 mW into 50 Ω
  • THD (Unbalanced):
    • 0.00022% / -113 dB at 10 mW into 50 Ω
    • 0.00022% / -113 dB at 100 mW into 50 Ω
  • Output Power (SE): 1 W into 50 Ω
  • Output Power (Balanced): 3.5 W into 50 Ω
  • Dynamic Range: 122 dB
  • Headphone Output Impedance:
    • 0.5 Ω (Unbalanced)
    • 1 Ω (Balanced)
  • Frequency Response: 3 Hz – 900 kHz

  DAC and Digital Inputs

  • DAC Chip: ESS Sabre ES9038PRO
  • DAC Resolution: 768k/32bit, DSD 256
  • Digital Inputs:
    • AES/EBU: Up to 192 kHz/24bit, DoP 64
    • Optical S/PDIF: Up to 96 kHz/24bit
    • Coaxial S/PDIF: Up to 192 kHz/24bit, DoP 64
    • USB-C: Up to 768 kHz/32bit, DSD 256
    • ARC (TV input with CEC): Up to 192 kHz/24bit
    • I2S (PS Audio® compatible): Up to 768 kHz/32bit, DSD 256
  • MQA Support: Decoder and renderer on all digital inputs with bypass mode

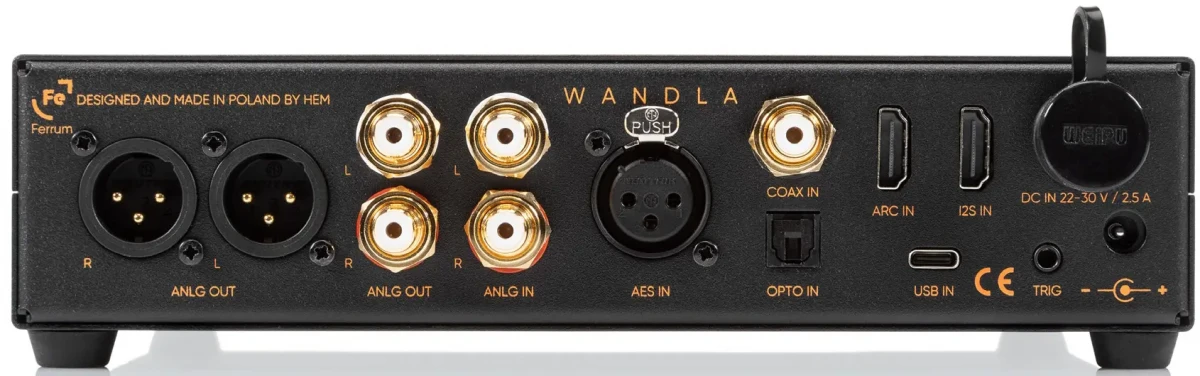

  Analog Inputs and Outputs

  • Analog Inputs: RCA
  • Analog Input Specifications:
    • Input Voltage Max: 9.5 V RMS (Recommended: 2–3.5 V RMS)
    • Input Impedance: 47 kΩ
  • Line Outputs:
    • Balanced XLR
    • Unbalanced RCA
  • Volume Control:
    • Analog with bypass option
    • Digital for DAC-only operation

  Performance Metrics

  • Output Level:
    • PRO: 10 V RMS (Balanced), 5 V RMS (Unbalanced) at 0 dBFS, 1 kHz sine
    • REDbook: 4 V RMS (Balanced), 2 V RMS (Unbalanced) at 0 dBFS, 1 kHz sine
  • Frequency Response (Analog Inputs): 10 Hz – 200 kHz ±0.1 dB
  • DAC THD: -121 dB (0.00009%)
  • DAC THD+N: -115 dB (Unweighted)
  • Analog Input THD: -123 dB at 2 V RMS output level
  • Dynamic Range:
    • Analog: 127 dB (A-weighted)
    • Digital: 122 dB (A-weighted)
  • Crosstalk:
    • -120 dB at 1 kHz
    • Better than -100 dB for 20 Hz – 20 kHz
  • Output Impedance:
    • 22 Ω (Unbalanced)
    • 44 Ω (Balanced)

  Power and Build

  • Power Consumption:
    • 13 W (Idle, Amp Off)
    • 18 W (Idle, Amp On)
    • 35 W (Max)
  • Power Inputs:
    • 5.5/2.5 mm DC connector (center positive)
    • Proprietary FPL 4-pin DC connector (22–30 VDC)
  • Power Adapter: 100–240 VAC to 24 VDC
  • Dimensions: 8.6 x 8.1 x 2.0 inches / 21.7 x 20.6 x 5 cm (W x D x H)
  • Weight: 1.9 kg / 4.19 lbs
  • Remote Control: Included
