Lyngdorf MP-60 2.1 Multi Channel Processor

Lyngdorf MP-60 2.1 Multi Channel Processor

Experience the epitome of advanced audio technologies with the MP-60 2.1 processor from Lyngdorf Audio. This exceptional device showcases Lyngdorf's renowned room correction system, RoomPerfect, and unparalleled digital signal processing capabilities. Developed at the group headquarters in Skive, Denmark, it stands alongside the Steinway Lyngdorf version, the P300, as a pinnacle of audio engineering.

State-of-the-art HDMI processing

Designed for user-friendly operation and seamless installation, the MP-60 2.1 processor offers an intuitive interface and effortless setup. With the ability to decode up to 16 native audio channels, intelligently mapping them through a sleek website interface, it provides unparalleled flexibility. The MP-60 2.1 fully supports the latest immersive surround formats, including Dolby Atmos®, DTS:X® Pro, and AURO-3D®.

Equipped with five HDMI inputs and two outputs, this remarkable audio masterpiece now supports HDMI 2.1 technology, complete with features like eARC (enhanced Audio Return Channel), Dynamic Lip-Sync, and QMS (Quick Media Switching). It also boasts compatibility with the latest decoding and post-processing formats. With support for 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates, the MP-60 2.1 ensures outstanding video performance. Additionally, it features Variable Refresh Rate (VRR), Quick Frame Transport (or Fast Vactive), and Auto Low Latency Mode (ALLM). The processor seamlessly passes through high dynamic range (HDR) metadata, including HDMI dynamic HDR, HDR10+, and Dolby Vision™. The eARC functionality enables a full Dolby Atmos audio bitstream to be returned from the television to the processor, ensuring pristine audio quality from the TV's built-in media players.

Unlock a new level of audio excellence with the MP-60 2.1 processor from Lyngdorf Audio. Harnessing state-of-the-art HDMI processing and incorporating advanced technologies, it delivers an unparalleled audio experience, setting the benchmark for audio processors in the industry.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Lyngdorf MP-60 2.1 Multi Channel Processor. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Lyngdorf MP-60 2.1 more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Lyngdorf MP-60 2.1 Multi Channel Processor, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Lyngdorf MP-60 2.1 Specification to Follow

• Decoding: 16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs
• Post processing options: Dolby Surround, AURO-MATIC®, DTS Neural:X
• Audio inputs: 5 x HDMI™, 1 x HDMI™ eARC (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™
• Audio outputs: 16 x XLR analog outputs (16 Vrms), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit)
• Audio specifications: Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
• EQ: RoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
• Media player: Internet radio (vTuner), AirPlay, Spotify Connect, Roon Ready, DLNA Support of FAT32 based media storage (uPnP/see DLNA formats)
• Video inputs: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support. accepts HDR, Dolby VisionTM and HLG
• Video outputs: 2 x HDMI (HDCP 2.3)
• Video scaling: Upscaling of all video to 4K ultra high definition, no downscaling of 4K video

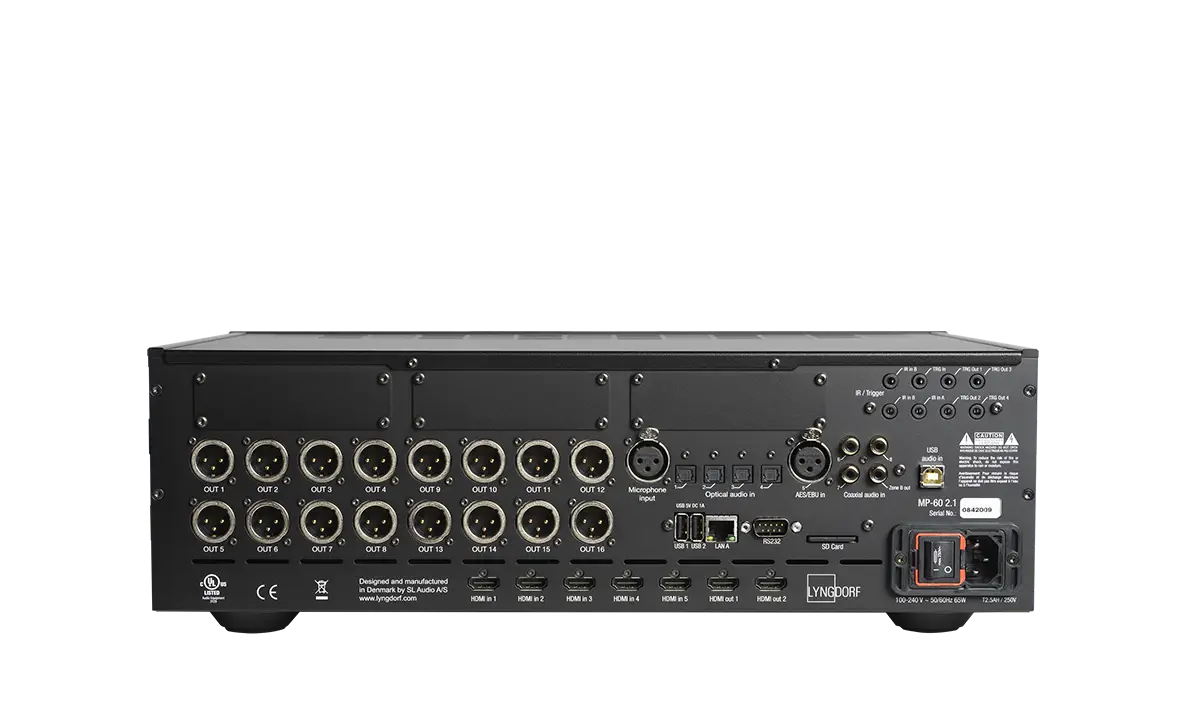

• Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)
• Accessories included: RoomPerfect microphone, Microphone stand, Microphone cable, RF remote control
• Optional module: 16 channel DCI-compliant digital AES/EBU input for movie servers (supports up to 32bit/192kHz), 16 channel digital AES/EBU output module (always 24bit, 48kHz or 96kHz Selectable), 16 channel AES67 digital input/output module (supports up to 32bit/192kHz input, output is always 24bit/48kHz)
• Remote control: Infrared/RF
• Placement options: Rack mount and freestanding
• Heat dissipation value: 340 BTU
• Dimensions (H x W x D): 14.7 x 45.0 x 37.0 cm, 5.8 x 17.7 x 14.6 in
• Weight: 9 kg / 19 lbs
