Project EVO CC Tonearm

Project EVO CC Tonearm

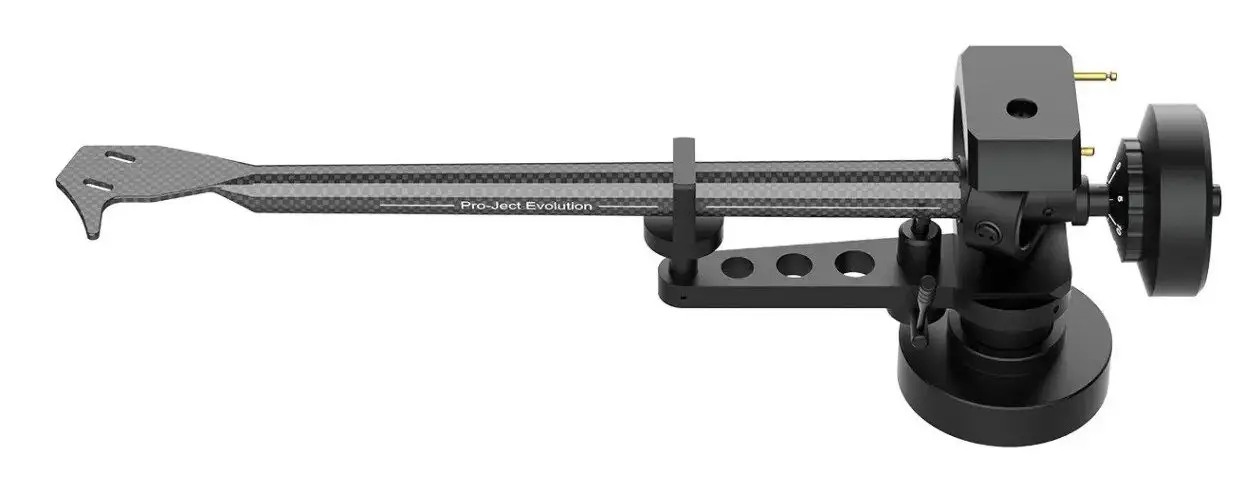

The Project EVO CC Tonearm is a precision-engineered audio component that prioritizes functionality and quality. Crafted with meticulous attention to detail, this tonearm incorporates high-purity copper inner wiring, ensuring reliable signal transmission and audio clarity. Its aluminum bearing block enhances stability and durability, contributing to the overall performance of the tonearm.

The EVO CC features an ultra-low friction 4-pin point cardanic tonearm bearing for smooth and precise movement. The tonearm tube is constructed from stiff yet lightweight carbon material, striking a balance between rigidity and weight. A TPE damped counterweight is integrated to prevent resonances, guaranteeing an unadulterated audio experience. Accurate azimuth and VTA adjustments enable fine-tuning of the cartridge setup, ensuring optimal sound quality.

To further enhance audio quality, the EVO CC tonearm incorporates an open outside ring, effectively minimizing bell-mode resonances. Its silicone-damped armlift is adjustable to suit various arm heights, providing convenience and usability. This tonearm also features a gold-plated 5-pin DIN output socket for secure connections. Available in CC Black and CC HG versions in 9, 10, and 12-inch lengths, the Project EVO CC Tonearm is proudly crafted in Europe, adhering to high manufacturing standards.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Project EVO CC Tonearm. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Project EVO CC Tonearm more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Project EVO CC Tonearm, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Project EVO CC Tonearm Specifications:

• Effective tonearm length: 304.8 mm (12"), 254 mm (10"), 230 mm (9")
• Mounting distance: 291.6 mm (12"), 238 mm (10"), 212 mm (9")
• Offset angle: 18° (12"), 21.4° (10"), 24° (9")
• Overhang: 13.2 mm (12"), 16 mm (10"), 18 mm (9")
• Pitch of mounting grooves in headshell: 12.7 mm (12"), 12.7 mm (10"), 12.7 mm (9")
• Effective tonearm mass: 10.5 g (12"), 8.5 g (10"), 8 g (9")
• Cartridge weight: 6-15 g (12"), 6-14 g (10"), 7-14 g (9")
• The range of the tracking force: 0 - 3 g (12"), 0 - 3 g (10"), 0 - 3 g (9")
• The minimal null point: 125 mm (12"), 126.8 mm (10"), 130.6 mm (9")
• The maximal null point: 251.7 mm (12"), 248.2 mm (10"), 243.7 mm (9")
• Tonearm weight (without flange): 271g (12"), 269g (10"), 265g (9")
