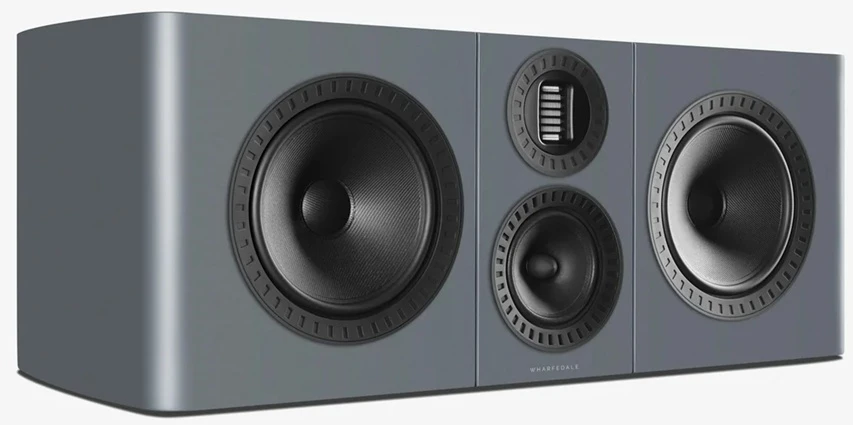

Wharfedale Elysian CR Centre Speaker

Wharfedale Elysian CR Centre Speaker

The Wharfedale Elysian CR Centre Speaker is the dedicated centre channel in Wharfedale’s flagship Elysian R Series, engineered for high-performance home cinema systems where dialogue clarity, tonal accuracy, and seamless integration are essential. It is designed not simply as a supporting speaker, but as a critical anchor in a full multichannel setup, delivering vocal precision and cinematic realism with exceptional control.

Positioned within Wharfedale’s most advanced loudspeaker range, the Elysian CR benefits from technologies developed for the second-generation Elysian series, refined under the guidance of Peter Comeau. The result is a centre speaker that combines technical sophistication with musical naturalness, ensuring consistent performance across both film and music playback.

Integration Within the Wharfedale Elysian R Series

The Wharfedale Elysian CR Centre Speaker is designed to integrate seamlessly with the wider Elysian R range, which includes the 1R, 2R, 3R, and 4R models. While these speakers handle left and right channel duties across stereo and home cinema systems, the CR is purpose-built for centre channel reproduction, where clarity and tonal matching are most critical.

In a full Elysian R system, the CR ensures that dialogue and on-screen action remain perfectly anchored to the centre of the soundstage. This consistency allows sound to move naturally across the front of the room, creating a stable and immersive cinematic experience with no tonal discontinuity between channels.

AMT High-Frequency Performance and Detail Retrieval

At the heart of the Wharfedale Elysian CR Centre Speaker is an advanced Air Motion Transformer (AMT) tweeter, designed to deliver extremely fast transient response and low distortion high-frequency reproduction. Unlike traditional dome tweeters, the AMT design uses a pleated diaphragm that moves air more efficiently, resulting in greater speed and precision.

For the Elysian R Series, this unit has been further refined with a lightweight PET diaphragm, an enlarged radiating surface, and an acoustically damped rear chamber. These improvements enhance openness and airiness while maintaining smooth, fatigue-free treble performance.

In practical use, this means dialogue sounds more articulate, ambient effects are more revealing, and high-frequency detail is presented with clarity and refinement rather than harshness. The result is a more natural and immersive listening experience, especially in complex cinematic soundtracks.

Midrange Accuracy and Dialogue Intelligibility

The midrange performance of the Wharfedale Elysian CR Centre Speaker is specifically engineered for one of the most important roles in home cinema: clear and natural dialogue reproduction. A dedicated woven glass fibre matrix cone driver is used to ensure excellent rigidity, low coloration, and fast transient response.

This driver is supported by a highly refined motor system, die-cast chassis, aluminium demodulation ring, and precision phase plug, all of which contribute to improved dispersion and reduced distortion. The design ensures that vocal content remains stable, focused, and highly intelligible even during demanding scenes.

As a result, voices are rendered with a natural sense of presence and texture, allowing dialogue to remain clear and believable regardless of listening position or volume level. This makes the CR particularly effective in both dedicated cinema rooms and living room installations.

Bass Control and Cinematic Weight

Although primarily focused on dialogue reproduction, the Wharfedale Elysian CR Centre Speaker also delivers controlled low-frequency performance that supports cinematic realism. Its glass fibre matrix bass drivers are engineered for tight, accurate response, ensuring that male vocals and lower-frequency effects retain body without becoming bloated or imprecise.

The bass system is carefully integrated with the midrange and treble units to maintain tonal balance across the entire frequency range. This allows the CR to produce a cohesive and natural sound, even during demanding film sequences where dynamic range and impact are critical.

When paired with the Elysian R left and right speakers, the result is a unified front soundstage with consistent tonal character and strong spatial coherence.

Precision Crossover Design and Signal Integrity

The crossover network inside the Wharfedale Elysian CR Centre Speaker plays a crucial role in maintaining tonal balance and phase accuracy. It has been carefully engineered using high-quality components selected for transparency and low signal loss, including air-core inductors, high-silicon iron-core coils, and audiophile-grade polypropylene capacitors.

The layout is designed with a direct signal path approach, minimising interference and preserving fine musical detail. Separate circuit board sections help isolate frequency ranges, reducing interaction between bass and high-frequency elements.

This careful engineering ensures smooth integration between drivers, resulting in stable imaging, consistent tonal balance, and a highly cohesive soundstage across the front channels.

Cabinet Construction and Acoustic Refinement

The cabinet of the Wharfedale Elysian CR Centre Speaker reflects Wharfedale’s commitment to both acoustic precision and luxury craftsmanship. It uses a multi-layered wood construction with varying densities, combined with internal bracing designed through advanced modelling techniques to reduce resonance.

Wharfedale’s Panel Resonance Optimisation System further enhances structural rigidity, ensuring that unwanted vibrations are kept well below audibility. This allows the drivers to perform without interference from cabinet coloration, preserving clarity and dynamic accuracy.

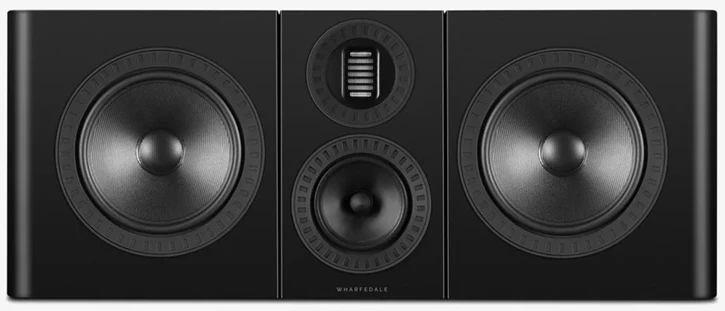

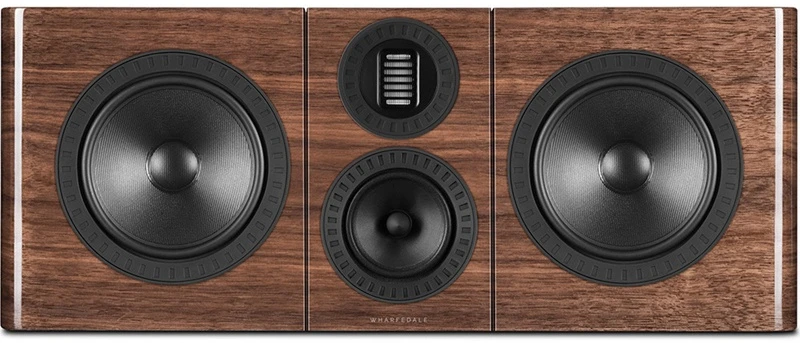

The exterior finish is equally refined, with options including piano lacquer walnut veneer, matte black, and matte grey. Each cabinet is carefully hand-finished, giving the speaker a premium aesthetic suitable for high-end cinema environments.

Wharfedale Elysian CR Centre Speaker – Final Overview

The Wharfedale Elysian CR Centre Speaker is a reference-grade centre channel designed for serious home cinema systems where dialogue clarity, tonal consistency, and immersive sound staging are essential. By combining advanced AMT high-frequency technology, highly accurate midrange reproduction, controlled bass performance, and precision crossover engineering, it delivers a performance that matches the flagship status of the Elysian R Series.

In a complete system, the CR ensures that the front soundstage remains coherent, natural, and emotionally engaging, making it an essential component for achieving true cinematic realism at home.

Wharfedale Elysian CR Centre Speaker Specification:

• Performance
• Frequency response (±3 dB): 35 Hz–22 kHz
• Bass extension (-6 dB): 27 Hz
• Sensitivity: 91 dB (2.83 V @ 1 m)
• Nominal impedance: 4 Ω
• 8 Ω compatible
• Minimum impedance: 3.5 Ω
• Recommended amplifier power: 25–250 W
• Crossover frequencies: 360 Hz / 2.9 kHz
• Drivers
• Treble driver: 27 × 45 mm AMT (Air Motion Transformer)
• Midrange driver: 150 mm glass fibre matrix cone
• Bass driver: 220 mm glass fibre matrix cone ×2
• Design
• Configuration: 3-way centre speaker
• Enclosure type: Bass reflex
• 2 × rear ports
• Model
• ELYSIAN CR
• Dimensions
• Height × Width × Depth: 320 × 830 × 340 mm
