Graham Slee Elevator EXP Step Up Pre Amplifier

Graham Slee Elevator EXP Step Up Pre Amplifier

The Graham Slee Elevator EXP Step Up Pre Amplifier is available for demonstration in our Hull store by request.

The Elevator EXP step-up preamplifier preamplifies the signal from a conventional output moving coil phono cartridge to moving magnet cartridge sensitivity. The signal is then fed to a moving magnet phono stage. Unlike a step up transformer hum cannot be induced into it, and it's far more linear making for a tighter bass response.

It's the electronic equivalent of a moving coil step up transformer (SUT). However, a step up transformer easily picks up hum and electrical disturbances — it also consumes some of the delicate signal current to magnetize its core. Because the bass output of an MC cartridge is much less than the mids and highs, the magnetising current losses are not very linear and that makes transformer design difficult — it's never going to perform at its best.

Enter the electronic solution - the Graham Slee Elevator EXP Step Up Pre Amplifier. It uses a technique from our Ultra-Linear "toolbox" which extends open-loop frequency response, something that's usually only available with tube amplification, but tubes can't do such low level signals. It's hardly surprising that it does "the tube sound", but without all the problems you get with tubes — it's an excellent addition to any tube phono preamp when you want to use a low output moving coil.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Graham Slee Elevator EXP Step Up Pre Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Graham Slee Elevator EXP Step Up more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Graham Slee Elevator EXP Step Up Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Graham Slee Elevator EXP Step Up Pre Amplifier Specification:

• Input range: 0.15mV to 0.8mV
• Output (for input range): 2mV to 10mV, suitable for a moving magnet phono stage input
• Maximum input: 378mV rms (a very large overload margin)
• Maximum output: 4.914V rms
• Gain: 22dB (13) < 10Hz to 917kHz (-3dB points)

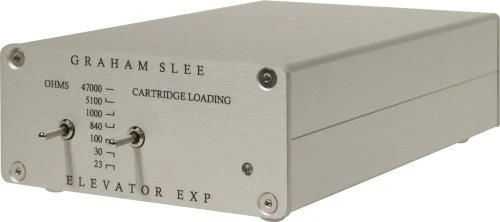

• Input impedance: 23, 30, 100, 840, 1000, 5100 and 47000 Ohms
• Output (driving/source) impedance: 300 Ohm
• Recommended load impedance: 47k Ohms phono stage preamp input
• Noise at output: -99dB CCIR Q-pk
• Distortion: 0.02%
• Frequency response: < 10Hz to 917kHz (-3dB points)
• Channel balance: 0.2dB
• Channel separation: 64dB
• Size (approx.) W: 107 x H: 50 x D: 180 (mm) inc. jacks
