Graham Slee Reflex M Phono Stage

From £539

  • 2 Years warranty

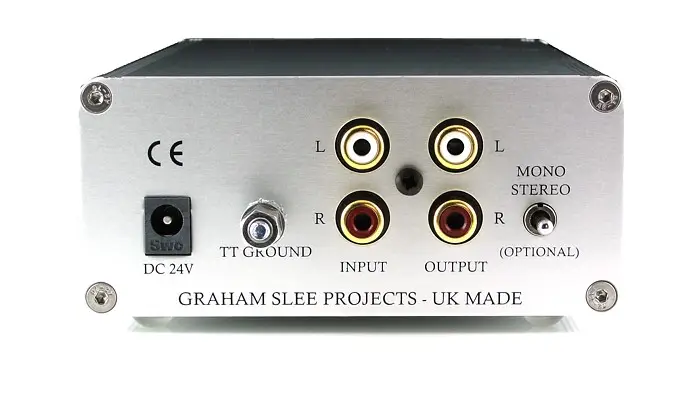

Graham Slee Reflex M Phono Stage

Graham Slee’s flagship phono stage for moving magnet, high-output moving coil and moving iron cartridges, hand-built in Britain. It gives a stable, three-dimensional stereo image – height and depth as well as left to right. Demonstrations may be possible by arrangement with Graham Slee – just ask.

Why a Dedicated Stage?

Switchable MM/MC phono stages are built around an ultra-low-noise MC input. Feed it a high-output cartridge and loud peaks can overload it. The Reflex M is designed only for high-output cartridges, with plenty of headroom, so dynamic music stays clean.

Good to Know

  • Supplied with the basic power supply
  • Upgrade to the PSU1 for better sound – or ask us about the PSU1 Enigma
  • Have a low-output moving coil? Choose the Reflex C, or add the Elevator EXP step-up
  • Want EQ for older records too? See the Revelation

Part Exchange Available

We offer a generous part exchange on the Reflex M. Call 01482 223096 or email shop@fanthorpes.co.uk with what you've got and we'll give you a price to change.

Finance Available

Buy now pay later is available – spread or defer your payments over a year. Email shop@fanthorpes.co.uk or call 01482 223096 and we'll send you an application.

Specification

  • Connectors: RCA/phono sockets, hard gold plated
  • Input sensitivity range: 1.6mV to 9.2mV (recommended)
  • Output range (for above inputs): 179mV to 1030mV
  • Maximum input: 46mV rms
  • Maximum output: 5.2V rms
  • Gain: 41dB (112) at 1kHz
  • Input impedance: 47k Ohms plus 100pF
  • Output impedance: 1k Ohm (will drive 10k Ohms and above)
  • Noise at output: -68dB Quasi-peak 20Hz to 20kHz
  • Distortion: typically 0.01%
  • RIAA accuracy: < 0.3dB
  • Frequency response: 20Hz - 100kHz ("flat", corrected to RIAA)
  • Channel balance: 0.2dB
  • Channel separation: 60dB
  • Power supply: basic power supply (PSU1 upgrade available)
  • Size (approx.): W107 x H50 x D180 mm inc. jacks
