Ferrum Audio Hypsos Power Supply

From £1,099

  • Comes with 2 Years warranty
  • Interested in
Ask a question

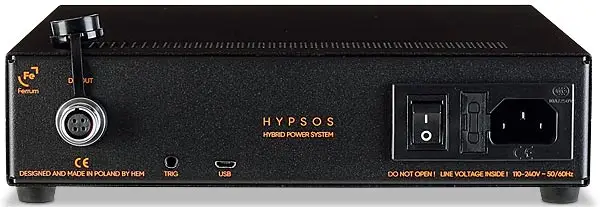

Ferrum Hypsos Power Supply

The Ferrum Hypsos Power Supply is available for demonstration in our Hull store by request.

Please note: the Ferrum Hypsos is now provided with two power cables: both have a 4-pin DC connector at one end which connects to the Hyspos, and either a 2.1mm or 2.5mm jack to connect to your equipment. A 4-pin DC to 4-pin DC cable is also available to purchase separately.

HYPSOS is a hybrid power system and combines the best features of both linear and switching power supplies. HYPSOS can power many brands with a simple revolution of a knob. This software-based operation is unique to HYPSOS and an industry first! Apart from the ease of operation HYPSOS makes use of a smart combination of existing power sensing techniques, which again sets it apart from the pack. HYPSOS will reveal unrivalled detail and makes your existing setup perform to the max. You’ll just love it!

Any quality device with a DC power connector will benefit from HYPSOS. This could be a preamplifier, D/A converter, separate phono preamp, turntable or even a network switch. HYPSOS will power selected components and make them perform to the maximum of their capabilities.

HYPSOS defines a brand new category of hifi products. It’s not a simple power supply but an audio component of its own – an equally (or even more) important part of a setup as any other. HYPSOS offers a selection of unique features and even accounts for future software improvements – the device is software controlled with as few hardware-dependent elements as possible.

Check out which products are compatible with Hypsos.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Ferrum Hypsos Power Supply. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Ferrum Hypsos more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Ferrum Hypsos Power Supply, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Ferrum Hypsos Power Supply Specification:

  • Power input: 100-240Vac/50-60Hz (UK/EU/US Version) IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low-frequency applications
  • Mains cable: UK
  • DC OUT cable: 5×2.5mm DC plug / 5×2.1mm DC plug Custom cables made to order at additional cost
  • Output Voltage Range: 5-30 [V]
  • Max Continuous Output Current (for V_out below 13,3V): 6 [A]
  • Max Continuous Output Current (for V_out higher than 13,3V): l_out= 80[W] / DCout[V]
  • Maximum Impulse Current: 9A
  • Maximum Impulse Power: DC V_out*9A (270W for 30V)
  • Max Continuous Output Power (for V_out below 13,3V): P_out = V_out[V] * 6[A]
  • Max Continuous Output Power (for V_out higher than 13,3V): 80W
  • Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
  • Net weight (kg / lb): ~ 2,89 / ~ 6.2
  • Primary winding fuse: IEC 5x20mm, 250V 2A, slow-blow for UK, Europe, US version
  • Secondary winding fuse: Littefuse 154004T, 4A
  • Power consumption: 230VAC, 50Hz @ 12VDC out/: Idle – 6VA @ 15W load – 30,7VA @ 60W load – 98VA @ 80W load – 133,9VA
